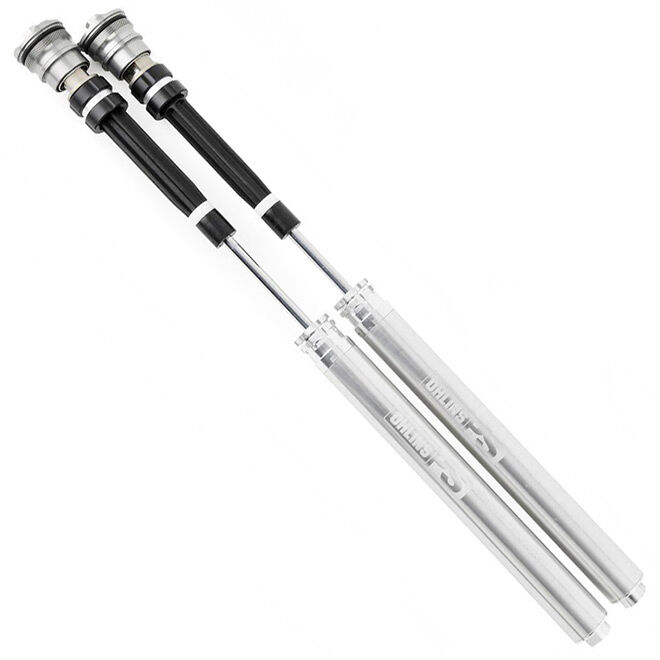

The Ohlins FKR116 fork cartridge kit is designed to improve front-end control and consistency on the Honda CBR1000RR. It focuses on delivering refined damping behaviour for better braking stability and clearer feedback through the bars. Intended for spirited road riding and occasional track use, it helps the fork feel more composed and predictable.
Ohlins | Made to race, perfected to ride
Ohlins cartridge kits are built around precise damping control and quality internal components. The aim is a more communicative front end that supports confident corner entry and mid-corner stability.
Who this kit is for
- CBR1000RR riders chasing improved braking stability and front-end feel
- Road riders who want more control without losing comfort and feedback
- Track-day riders looking for a more consistent, tunable fork response
Shock design & features
- Front fork cartridge upgrade for Honda CBR1000RR
- Refined damping characteristics to improve handling consistency
- Premium internal components to support consistent damping performance
Tuning controls
- Separate compression adjustment
- Separate rebound adjustment
Before you install
- Confirm compatibility with your exact Honda CBR1000RR model and year before installation
- Professional installation and correct setup are recommended to get the intended performance
Need help choosing?
If you’re not sure whether the FKR116 cartridge kit suits your riding and fork configuration, share your bike details and typical use (road or track) so the right option and setup approach can be confirmed.
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FKR116 |
| Model # | TTX25S |
| Barcode # | FKR116 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Type Code | TTX25S |
| Stroke Metal to Metal (mm) | 120.0 |
| Product Family | FKR 100 |
| Notes | Comes with 3 different spring rates: 9.5 ,10 & 10.5N/mm *Replaces FGR 172* |
| Fitted Spring | Sold separately. See notes. |
| Rec. Ohlins Oil | 01309- |
