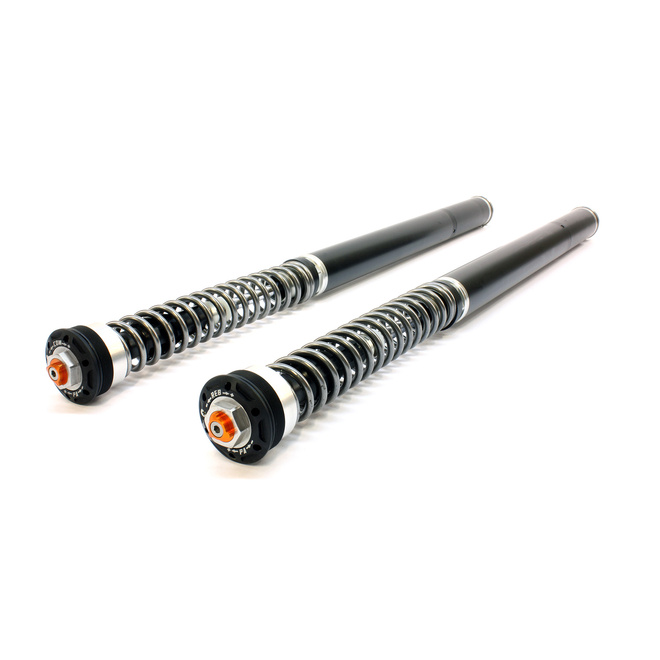

The Tractive X-TREME Fork Cartridge kit for the KTM 1090 ADVENTURE R replaces the fork’s internal damping components with a closed, pressurised cartridge design. This architecture keeps the damping circuit sealed and consistent, helping maintain control as conditions change. The kit uses a 35 mm cartridge format and includes external damping adjusters, without changing the fork’s external appearance.
Design & features
- Closed, pressurised fork cartridge architecture
- Cartridge-based damping unit designed to replace the fork’s internal damping components
- 35 mm cartridge format
Tuning Controls
- Dual adjustable damping
Who is this for?
- Riders who want broader, more precise fork damping control for mixed-surface and adventure riding
- Owners setting up their suspension for their load, tyres, and typical terrain
Before You Install
- Confirm compatibility with your exact KTM 1090 ADVENTURE R model and year before installation
- Installation requires fork disassembly and correct setup procedures; professional fitment is recommended
Serviceability/Lifecycle
- Designed as a serviceable cartridge system to support ongoing maintenance and long-term use
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 35KT15-D5323-TR |
| Model # | 35KT15-D5323-TR |
| Barcode # | 35KT15D5323TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.900m |
| Unit Of Measure | Set |
| Type | X-TREME |
| Format | Front |
If your Motorcycle is listed below, this product will suit:
- KTM 1090 Adventure R 2016
- KTM 1090 Adventure R 2017
- KTM 1090 Adventure R 2018
- KTM 1090 Adventure R 2019
- KTM 1090 Adventure R 2020
- KTM 1090 Adventure R 2021
- KTM 1090 Adventure R 2022
- KTM 1290 Super Adventure R 2017
- KTM 1290 Super Adventure R 2018
- KTM 1290 Super Adventure R 2019
- KTM 1290 Super Adventure R 2020
- KTM 1290 Super Adventure R 2021
- KTM 1290 Super Adventure R 2022
- KTM 1290 Super Adventure R 2023
- KTM 1290 Super Adventure R 2024
- KTM 1290 Super Adventure R 2025
- KTM 1290 Super Adventure R 2026
| Position (Front or Rear) | Front |
| Damping Adjustment Type | Rebound & Compression |
| Seat Height Change (mm) | Standard Height |
| Spring Rate Standard | 5.6 N/mm |
| Spring Option -2 | 4.8-390 |
| Spring Option +1 | 6.0-390 |
| Spring Option -1 | 5.2-390 |
| Air Chamber - Off Road | 80 |
| Air Chamber - Street | 85 |
| Compression Adjuster Position | 10 |
| Cartridge Length (mm) | 865.0 |
| Spring Option +2 | 6.4-390 |
| Manufacturer Note 1 | Fork oil included |
| Damping Feature | Hydraulic end-stop |
| Damping System | Separated oil/gas |
| Rebound Adjuster Position | 10 |
| Spring Preload Setting | 17 +12/-0 |
| Preload Adjustment | Mechanical |
| Spring Type | Linear, included |
| Piston Diameter (mm) | 35 |
| Suspension Unit Type | Cartridge kit |
| Fitted Spring | 5.6-390 |
| Notes | Hydraulic end-stop |
| Stroke Metal to Metal (mm) | 195.0 |
| Type Code | X-TREME |
