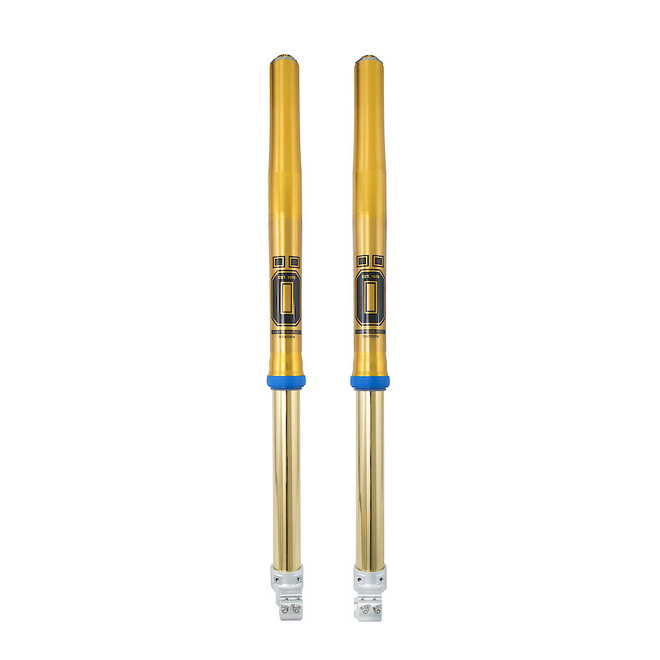

The Ohlins FGKT1694 TTX 22 fork cartridge is a front-end upgrade developed for the KTM 450 SX-F Europe. It is designed to deliver clearer feedback and a more composed feel under braking and through corners. The focus is controlled, consistent damping to support confident, precise handling.

Ohlins | Made to race, perfected to ride

Ohlins suspension components are built around predictable damping behaviour and tuneability. This cartridge kit targets improved front-end communication and stability so you can ride closer to the limit with better control.

Who this cartridge kit is for

  • Riders chasing stronger front-end feel and composure
  • Those wanting better stability under braking and improved mid-corner feedback
  • Owners of KTM 450 SX-F Europe looking for a dedicated Ohlins cartridge solution

Cartridge design & features

  • TTX 22 fork cartridge platform
  • Refined damping characteristics aimed at handling precision
  • Premium internal components for consistent operation

Tuning controls

  • Separate compression adjustment
  • Separate rebound adjustment
  • Designed for straightforward tuning to suit conditions and rider preference

Before you install

  • Confirm fitment for KTM 450 SX-F Europe before installation
  • Professional installation is recommended to ensure correct assembly and setup

Serviceability/lifecycle

Like all high-performance suspension components, periodic servicing helps maintain damping consistency and ride feel. Service intervals depend on usage and conditions.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FGKT1694
Model # TTX Cartridge kit
Barcode # FGKT1694
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code T22DR1C1
Stroke Metal to Metal (mm) 288.0
Product Family TTX 22
Notes 08765- series springs
Fitted Spring Sold separately, see notes.
Rec. Ohlins Oil 01330-
