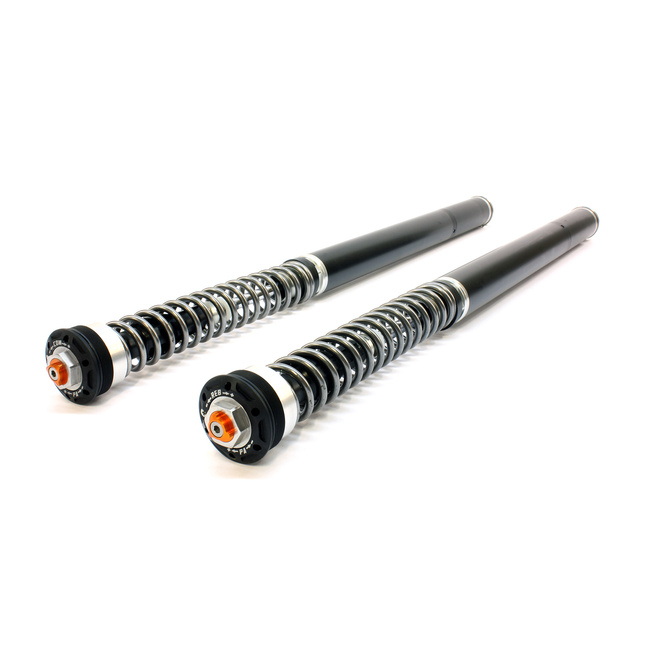

The Tractive X-TREME Fork Cartridge Kit for the Husqvarna Norden 901 Expedition replaces the internal fork damping with a sealed cartridge design. This closed, pressurised architecture helps maintain consistent damping behaviour over varying conditions and sustained use. It is designed as a matched internal kit to bring more controlled, repeatable fork response without relying on external reservoirs.
Design & features
- Sealed cartridge fork internals (closed and pressurised) for stable damping performance
- Cartridge-based architecture intended to deliver consistent oil control through the stroke
Tuning Controls
- Dual adjustable damping (compression and rebound)
Who is this for?
- Riders of the Husqvarna Norden 901 Expedition looking for more tunability from their fork damping
- Owners who want external adjustment access for both compression and rebound to better match load, terrain, and riding style
Before You Install
- Confirm suitability for your exact Husqvarna Norden 901 Expedition fitment before installation
- Professional installation is recommended, as fork cartridges require correct assembly, oil setup, and alignment checks
Serviceability/Lifecycle
- Serviceable sealed cartridge construction to support ongoing performance through routine maintenance
- Periodic servicing is recommended to maintain damping consistency as oil and seals wear over time
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 35KT19-D5332-TR-02 |
| Model # | 35KT19-D5332-TR-02 |
| Barcode # | 35KT19D5332TR02 |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.900m |
| Unit Of Measure | Set |
| Type | X-TREME |
| Format | Front |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Front |
| Damping Adjustment Type | Rebound & Compression |
| Seat Height Change (mm) | Lowered -30 |
| Spring Rate Standard | 6.4 N/mm |
| Manufacturer Note 2 | Side and/or center stand might be too long |
| Spring Option -2 | 5.6-370 |
| Spring Option +1 | 6.8-370 |
| Spring Option -1 | 6.0-370 |
| Air Chamber - Off Road | 85 |
| Air Chamber - Street | 90 |
| Compression Adjuster Position | 10 |
| Cartridge Length (mm) | 855.0 |
| Spring Option +2 | 7.2-370 |
| Manufacturer Note 1 | Fork oil included |
| Damping Feature | Hydraulic end-stop |
| Damping System | Separated oil/gas |
| Rebound Adjuster Position | 10 |
| Spring Preload Setting | 16 +12/-0 |
| Preload Adjustment | Mechanical |
| Spring Type | Linear, included |
| Piston Diameter (mm) | 35 |
| Suspension Unit Type | Cartridge kit |
| Fitted Spring | 6.4-370 |
| Notes | Hydraulic end-stop |
| Stroke Metal to Metal (mm) | 185.0 |
| Stroke Metal to Metal (mm) | 180 |
| Type Code | X-TREME |
