KYB Factory Kit Shock KTM / HVA 16-22
Genuine KYB Factory Race Parts(SKU: 162017001301)
$3,980.90
Find your Bike:

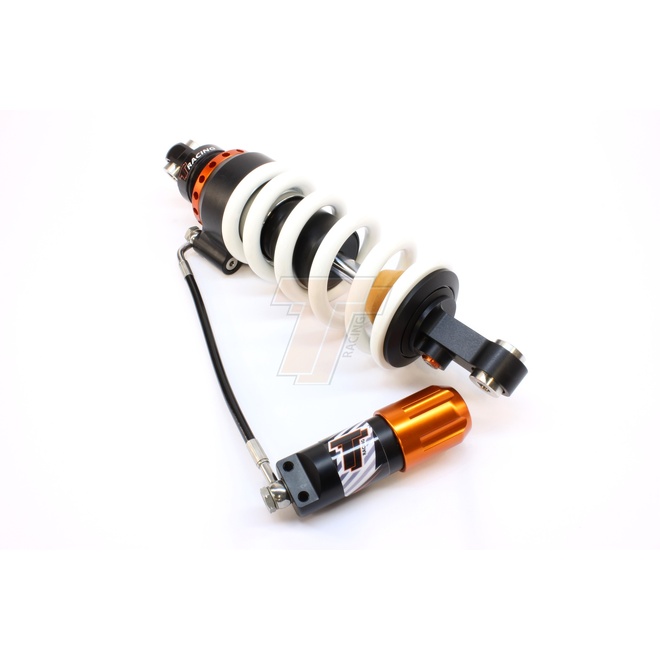

The Tractive X-CITE shock for the Kawasaki KLE650 Versys uses a closed, pressurised monotube design with an oil/gas separation piston to keep damping consistent during extended use. It is a fully sealed unit intended as a complete replacement rear shock. This model includes adjustable rebound damping to fine-tune control and feel.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
| SKU | 46KA15-R3507-TR |
| Model # | 46KA15-R3507-TR |
| Barcode # | 46KA15R3507TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
| Format | Rear |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 300.0 |
| Spring Rate Standard | 200 N/mm |
| Spring Option -2 | 180-160 |
| Spring Option +1 | 220-160 |
| Spring Option -1 | 190-160 |
| Spring Option +2 | 240-160 |
| Damping System | Separated oil/gas |
| Rebound Adjuster Position | 10 |
| Spring Preload Setting | 8 +13/-2 |
| Preload Adjustment | Hydraulic, with knob |
| Spring Type | Linear, included |
| Piston Diameter (mm) | 46 |
| Suspension Unit Type | Shock |
| Fitted Spring | 200-160 |
| Stroke Metal to Metal (mm) | 56.0 |
| Type Code | X-CITE |
