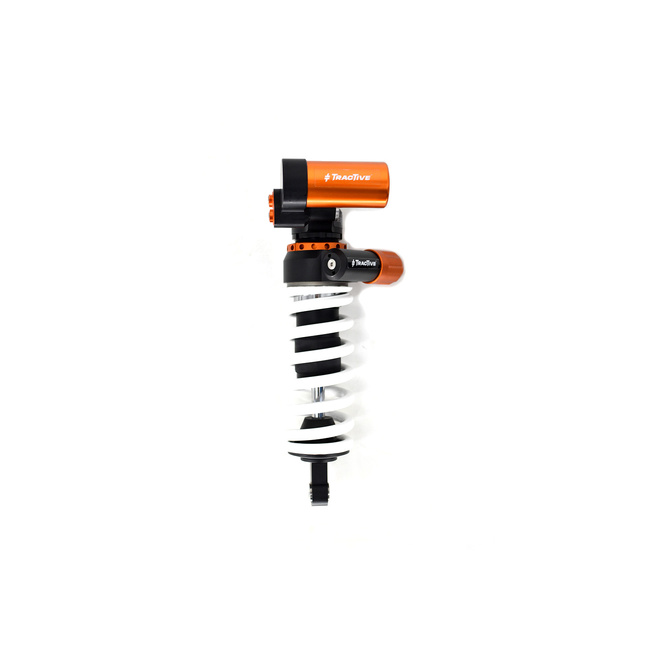

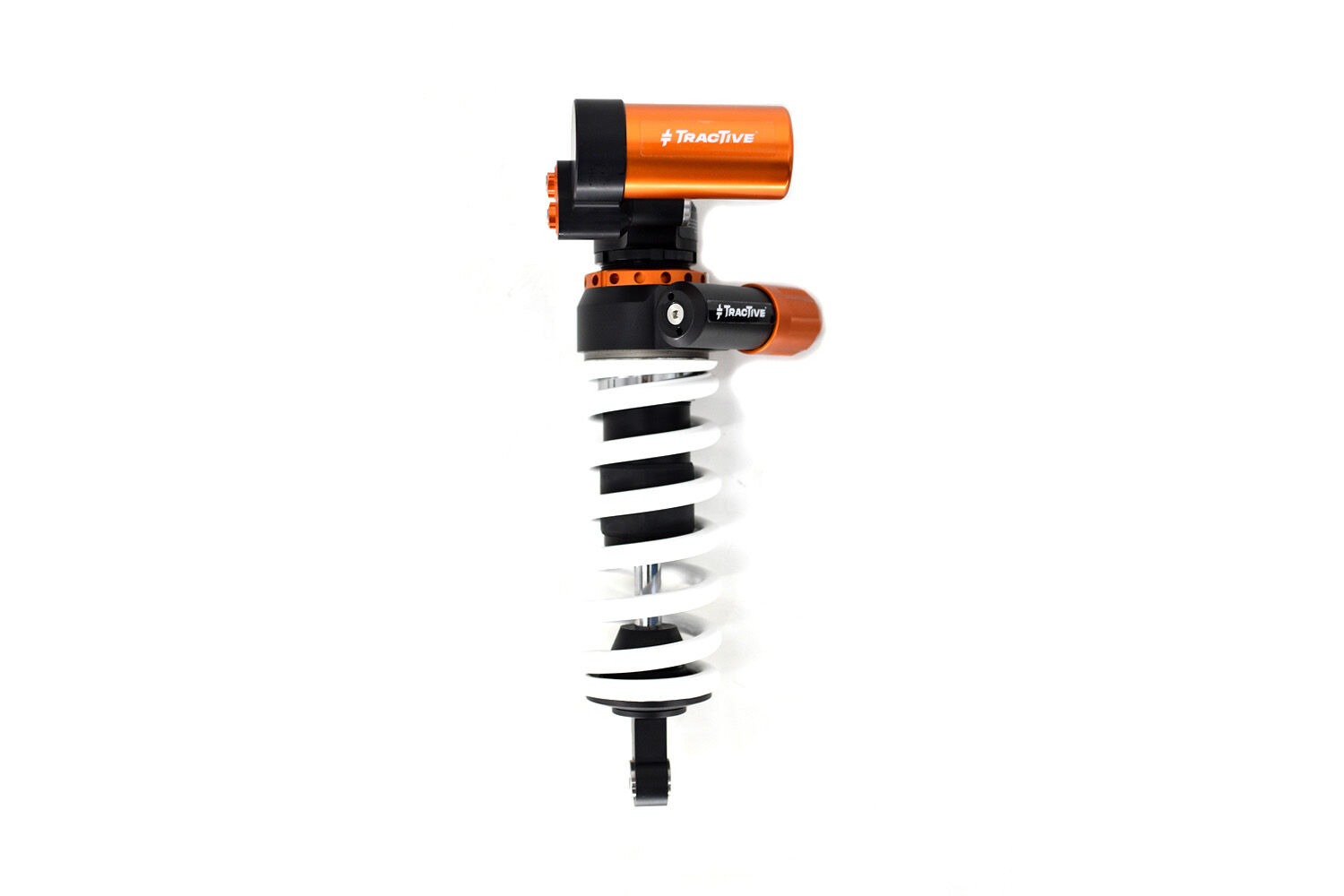

The TracTive X-TREME rear shock for the KTM 890 ADVENTURE (S) uses a closed, pressurised design with separated oil and gas to improve damping consistency and reduce fade under sustained use. This version is configured as a lowered shock, reducing rear ride height by 25 mm compared with a standard-length unit. It is built around a robust 46 mm shock body architecture aimed at controlled performance across mixed riding conditions.

Who is this for?

  • Riders who want a rear shock configured for a 25 mm lowered ride height.
  • Owners seeking consistent damping from a closed, pressurised, oil/gas-separated shock design.
  • Those who prefer broad adjustability for tuning to load and conditions.

Design & features

  • Closed, pressurised shock with oil and gas separated by an internal piston to maintain stable damping behaviour.
  • Remote reservoir configuration for thermal stability during extended, demanding rides.
  • Lowered configuration: rear ride height reduced by 25 mm.

Tuning Controls

  • Rebound damping adjustment.
  • Compression damping adjustment.
  • Spring preload adjustment.

Before You Install

  • Confirm the lowered ride-height change (25 mm) suits your handling and ground clearance needs.
  • Allow time to set sag and revisit damping settings after initial bedding-in.
  • Check clearance around the reservoir and hose routing during installation.

Is It Right For You?

  • Choose this shock if you specifically want a lowered rear setup with adjustable compression, rebound, and preload.
  • If you do not want a ride-height change, this lowered version may not be the correct option.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT19-T5327-TR-01
Model # 46KT19-T5327-TR-01
Barcode # 46KT19T5327TR01
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Shock Length Eye to Eye (mm) 357
Length Change (mm) Lowered -25mm
Spring Rate Standard 110 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 68
Notes PDSII anti-bottoming
Fitted Spring 110-180
