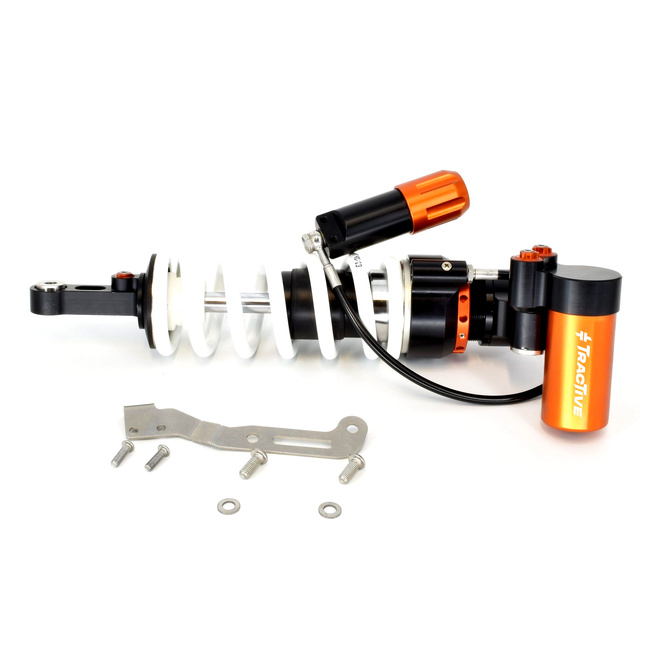

The Tractive X-TREME Shock for the Husqvarna 701 ENDURO is a 46 mm rear shock built around a closed, pressurised design that keeps the damping oil and gas properly managed under sustained use. This architecture helps maintain consistent damping behaviour as conditions and temperatures change. It uses an external reservoir with an internal separation piston to keep the gas and oil separated.

Design & features

  • Closed, pressurised shock design for more consistent damping behaviour across varying conditions.
  • External reservoir with a separation piston to keep oil and gas separated.
  • Spring-equipped configuration.

Tuning Controls

  • Triple adjustable damping: rebound damping, compression damping, and high-speed compression damping.

Who is this for?

  • Riders who want broad, on-bike adjustment range to tune feel and control for different loads and terrain.
  • Owners who prioritise consistent damping performance from a pressurised, oil/gas-separated shock layout.

Before You Install

  • Confirm fitment for your exact 701 ENDURO model and year before ordering.
  • Plan a baseline setup after installation so you can evaluate changes one adjustment at a time.

Serviceability/Lifecycle

  • Pressurised, oil/gas-separated shocks are designed to be serviced to keep performance consistent over time.

Is It Right For You?

  • Choose this option if you want separate control over rebound, compression, and high-speed compression in a reservoir shock configuration.
  • If you prefer a simpler setup with fewer external adjustments, this model may offer more tuning range than you need.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT19-T9536-TR-01
Model # 46KT19-T9536-TR-01
Barcode # 46KT19T9536TR01
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
Format Rear
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Lowered -25
Shock Length Eye to Eye (mm) 388.0
Spring Rate Standard 75 N/mm
Spring Option -2 65-205
Spring Option +1 80-205
Spring Option -1 70-205
Spring Option +2 85-205
Manufacturer Note 1 Side and/or center stand might be too long
Damping Feature PDSII anti-bottoming
Damping System Separated oil/gas with reservoir
Rebound Adjuster Position 12 (270 deg)
Low-speed Compression Adjuster Position 12
High-speed Compression Adjuster Position 10
Spring Preload Setting 16 +12/-3
Preload Adjustment Hydraulic, with knob
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 75-205
Notes PDSII anti-bottoming
Stroke Metal to Metal (mm) 90.0
Type Code X-TREME
