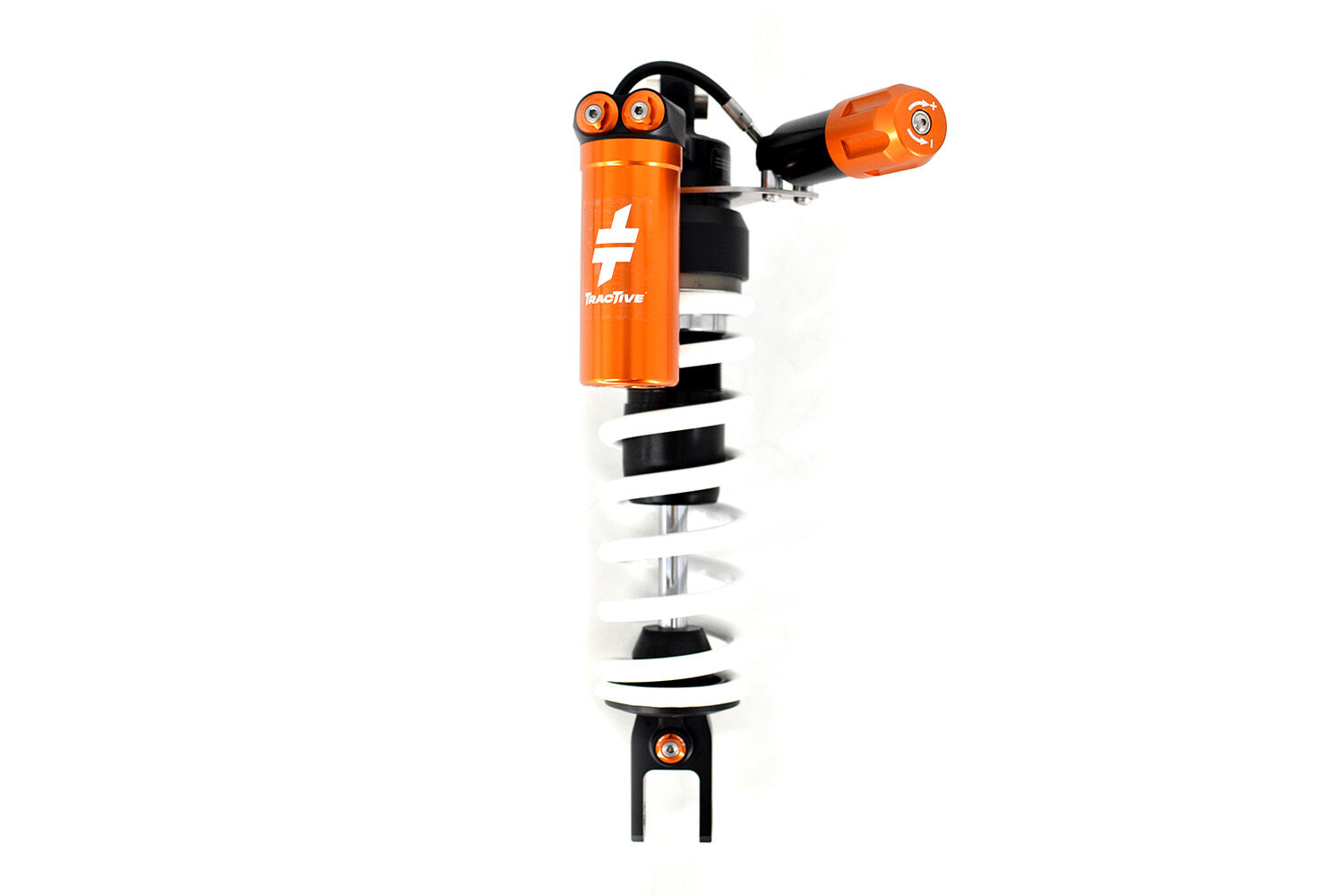

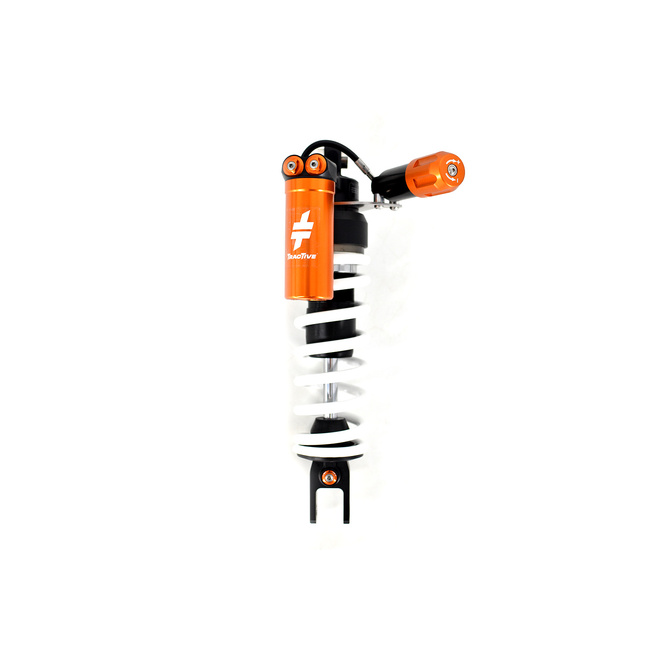

The Tractive X-TREME rear shock for the Yamaha Tenere 700 Rally is a closed, pressurised monotube design with a separation piston to keep oil and gas separated for consistent damping. This configuration uses an external reservoir and provides a 25 mm lowered ride height compared with standard length options. The shock is built around mechanical adjusters for setting up the bike for load, terrain and rider preference.

Design & features

  • Closed, pressurised monotube shock architecture
  • Oil/gas separation via an internal separation piston for consistent damping
  • External reservoir for added oil volume and thermal stability
  • Lowered configuration: 25 mm reduction in ride height

Tuning Controls

  • Rebound damping adjustment
  • High-speed compression damping adjustment
  • Low-speed compression damping adjustment

Who is this for?

  • Tenere 700 Rally riders who want a lowered rear ride height for confidence at stops
  • Riders carrying varying luggage loads who need a wider tuning range
  • Mixed-surface use where consistent damping over long rides matters

Before You Install

  • Confirm the lowered ride height suits your intended use and any matching front-end geometry changes you may be planning
  • Allow access to the reservoir and adjusters when routing and mounting
  • Set sag and baseline adjusters after installation to suit your rider weight and load

Serviceability/Lifecycle

  • Closed, pressurised construction with oil/gas separation is designed for stable performance over time
  • Periodic servicing helps maintain damping consistency and seals over the long term

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46YA25-T5547-TR
Model # 46YA25-T5547-TR
Barcode # 46YA25T5547TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Shock Length Eye to Eye (mm) 377
Length Change (mm) Lowered -25mm
Spring Rate Standard 75 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 94
Notes PDSII anti-bottoming
Fitted Spring 75-205
