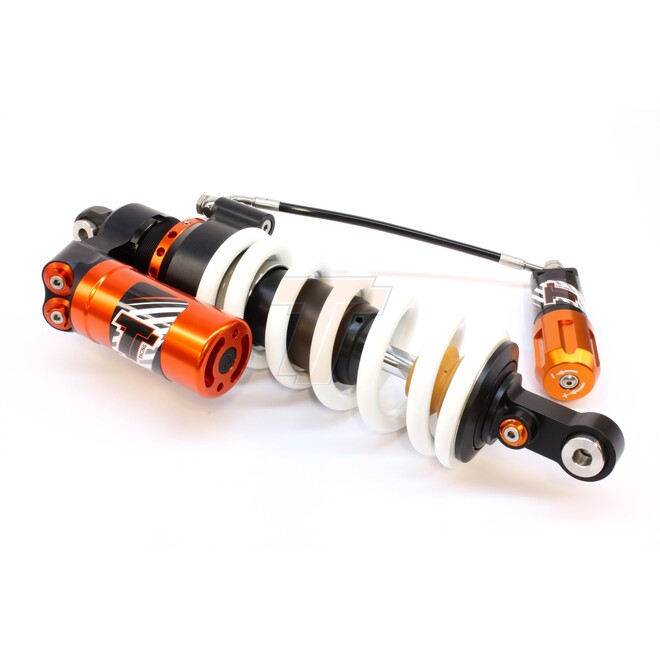

The Tractive X-TREME Shock for BMW F 900 GS Adventure is a closed, pressurised damper built around a sealed internal design to keep damping consistent across changing conditions. It uses an oil/gas separated architecture rather than an emulsion layout, helping reduce aeration during sustained use. This model is configured with a remote reservoir for stable fluid volume management and control. If your installation changes ride height, set sag and geometry carefully before riding.

Design & features

  • Closed, pressurised shock design with oil and gas kept separate via an internal separation piston
  • Remote reservoir layout
  • Coil-spring shock configuration

Tuning Controls

  • Three-way external damping adjustment: rebound plus compression tuning with separate high- and low-speed compression control

Base Setup (factory preset)

  • Supplied with a factory baseline tune intended as a starting point; final settings should be confirmed after correct sag is set for rider/load

Before You Install

  • Confirm clearance and hose routing for the remote reservoir before final mounting
  • After installation, check sag and overall chassis balance before making damping changes
  • Re-check fasteners and mounting points after initial bedding-in

Serviceability/Lifecycle

  • Sealed, pressurised construction is designed to maintain damping consistency; periodic servicing is still recommended to keep performance predictable over time

Is It Right For You?

  • Suitable if you want broad tuning range with independent rebound and high/low speed compression adjustment
  • A good match when consistent damping under varying heat and load is a priority

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM19-T5503-TR-01
Model # 46BM19-T5503-TR-01
Barcode # 46BM19T5503TR01
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 395.0
Spring Rate Standard 150 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 86
Notes PDSII anti-bottoming
Fitted Spring 150-205
