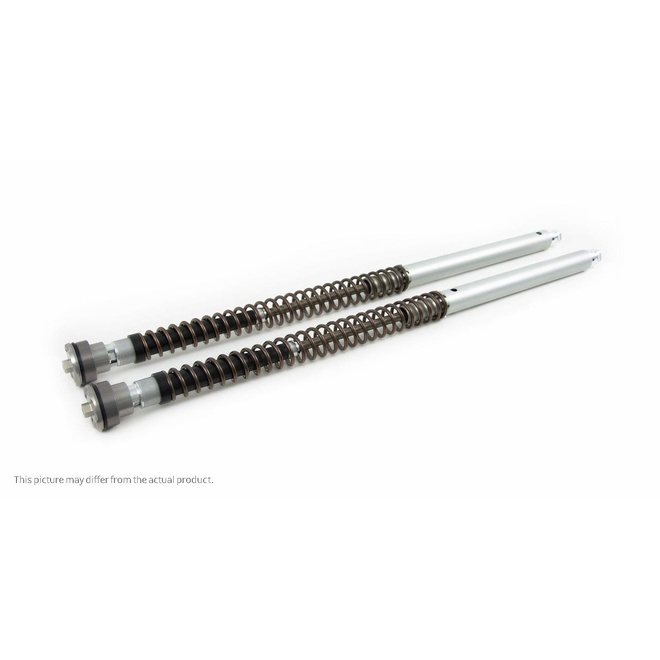

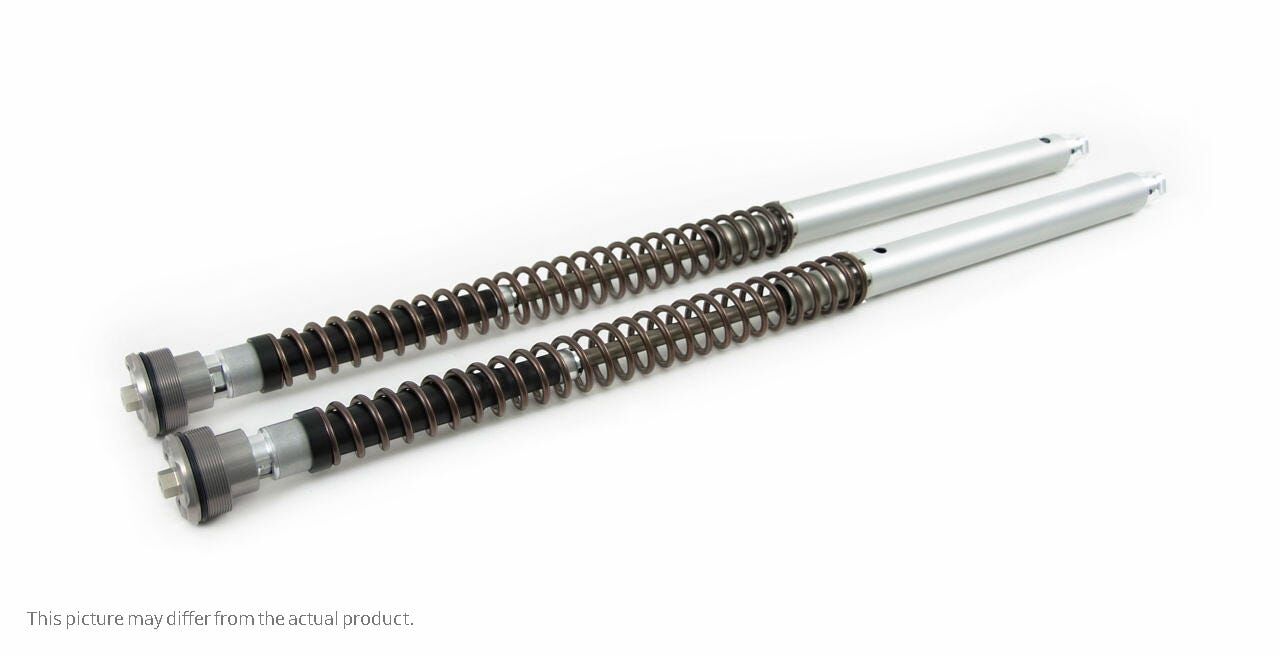

The Ohlins FKA106 Adventure cartridge kit is a front suspension upgrade designed for Yamaha XT 1200 Z Ténéré models fitted with Kayaba forks. Built for adventure riding, it focuses on maintaining control and comfort over rough surfaces while supporting stability when the bike is loaded. It is intended to deliver consistent feel across long days and changing terrain.

Ohlins | Made to race, perfected to ride

Ohlins cartridge kits replace the internal damping components inside the fork to give more controlled oil flow and a more tunable front end. This approach targets improved predictability on corrugations, rocky climbs, and uneven tracks. The goal is suspension you can set up for your riding and keep consistent over distance.

Who this kit is for

  • Adventure riders looking for better front-end control on mixed surfaces
  • Riders who cover long distances and want reduced fatigue from harsh impacts
  • Owners carrying luggage or a pillion who want improved stability from the fork

Shock design & features

  • Front cartridge kit developed for the XT 1200 Z Ténéré with Kayaba forks
  • Designed to improve composure over rough tracks and corrugations
  • Supplied with a fitted spring

Tuning controls

This kit includes external adjusters to support quick tuning as conditions change. Use them to refine feel for comfort, control, and stability depending on terrain and load.

Before you install

  • Confirm your bike is the Yamaha XT 1200 Z Ténéré with Kayaba forks before ordering
  • Professional installation is recommended to ensure correct assembly and setup
  • Plan to set sag and adjust the fork after installation to suit your weight and typical load

Serviceability/lifecycle

Like any performance suspension component, regular servicing helps maintain consistent damping and long-term reliability. Service intervals and settings should be matched to how and where you ride.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FKA106
Model # NIX 30 A
Barcode # FKA106
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code NIX 30 A
Fork Length (mm) 872.0
Stroke Metal to Metal (mm) 190.0
Product Family FKA 100
Notes Not for XT1200ZE model. 08424-series springs
Fitted Spring Sold separately. See notes.
