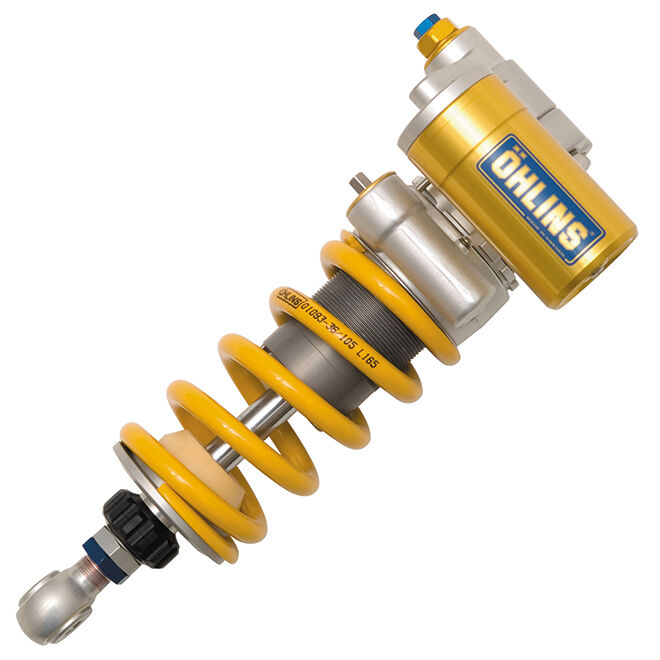

Name: Ohlins YA505 TTX RT Shock Rear for Yamaha YZF R6
Brand: Ohlins
SKU: YA505
Price: 1814.94 AUD
Availability: PreOrder

The Ohlins YA505 rear shock is a track-focused unit developed for Yamaha YZF R6 fitment where consistent damping control and clear chassis feedback matter. Built around Ohlins race-derived internal architecture, it is designed to support accurate setup changes without compromising stability. This shock uses a separated oil and gas layout to help maintain damping consistency during sustained hard use.

Ohlins | Made to race, perfected to ride

Ohlins shocks are engineered to provide controlled wheel movement and predictable response across braking, turning and drive. The YA505 follows this approach with a design aimed at repeatable performance and straightforward tuning.

Shock design & features

Rear mono shock configuration for Yamaha YZF R6
Separated oil and gas design to support stable damping behaviour
Ohlins-focused valving approach intended for track conditions

Tuning controls

Rebound damping adjustment
Compression damping adjustment
Spring preload adjustment

Before you install

Confirm fitment and clearance for your specific Yamaha YZF R6 model and any race hardware (linkages, ride-height parts, exhaust)
Set sag and baseline damping after installation, then adjust one change at a time to match tyres, pace and track surface
Check fasteners and mounting points during initial heat cycles and after early track sessions

Serviceability/lifecycle

This is a rebuildable Ohlins shock designed to be serviced. Regular oil and seal maintenance helps preserve damping consistency and protects internal components over time, particularly with frequent track use.

SKU	YA505
Model #	S46PR1C2LB
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

YAMAHA YZF-R6 2005

Position (Front or Rear)	Rear Mono
Shock Length Eye to Eye (mm)	300.5 +0/-6
Spring Rate Standard	105.0 N/mm
Type Code	S46PR1C2LB
Stroke Metal to Metal (mm)	62.5
Product Family	STX 46 Supersport
Fitted Spring	01093-36
Spring Colour	Yellow
Rec. Ohlins Oil	01309-
