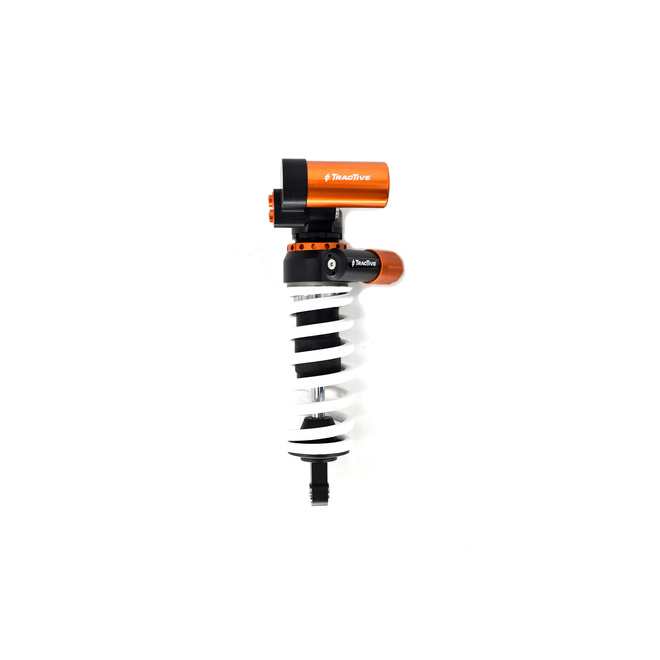

The Tractive X-TREME rear shock for the Husqvarna Norden 901 uses a closed, pressurised damper architecture with oil and gas separated for consistent damping and reduced aeration. This is a lowered configuration, changing rear ride height by 35 mm. It’s built around external adjustment and a spring preload adjuster to support setup changes for load and conditions.

Design & features

  • Closed, pressurised construction with separated oil and gas to help maintain damping consistency under demanding use
  • Lowered shock configuration for a 35 mm reduction in ride height
  • Remote reservoir design to manage damping performance and oil volume
  • Supplied with a spring and an external hydraulic preload adjuster (HPA)

Tuning Controls

  • Triple adjustable damping: rebound, plus both compression circuits (separate high-speed and low-speed compression adjustment)
  • Hydraulic preload adjuster (HPA) for tool-free preload changes

Who is this for?

  • Riders who want a lowered rear ride height on a Norden 901 while retaining broad, external damping adjustability
  • Owners who regularly vary luggage or passenger load and want quick preload changes via HPA
  • Those looking for a pressurised, separated oil/gas shock layout for stable performance over long rides

Base Setup (factory preset)

This shock is supplied with a factory baseline setup intended as a starting point. Fine-tuning is performed using the external rebound and compression adjusters, with preload set via the hydraulic adjuster to suit rider weight and load.

Before You Install

  • Confirm the motorcycle model and intended lowered ride-height requirement before installation
  • After installation, check static and rider sag and adjust preload accordingly
  • Following the 35 mm height change, review side stand stability and overall chassis balance

Serviceability/Lifecycle

The closed, pressurised design is intended to support consistent damping over time and is serviceable to restore performance as wear items age. Regular inspection for leaks or damage and periodic servicing helps maintain damping quality and adjustment function.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46HQ22-T5308-TR
Model # 46HQ22-T5308-TR
Barcode # 46HQ22T5308TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Shock Length Eye to Eye (mm) 361
Length Change (mm) Lowered -35mm
Spring Rate Standard 120 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 72
Notes PDSII anti-bottoming
Fitted Spring 120-180
