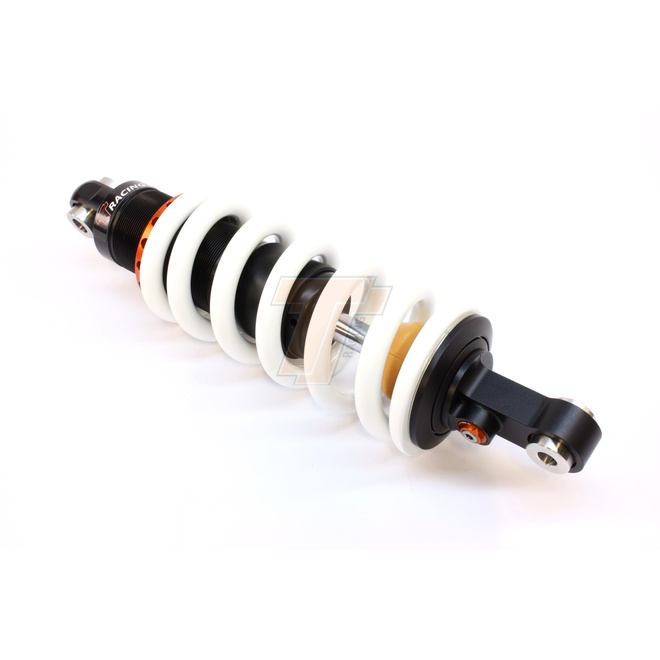

The Tractive X-CITE shock for the KTM 690 DUKE uses a closed, pressurised design to help keep damping consistent over long rides. This unit is built around a sealed architecture intended to better manage oil control under heat and repeated movement. It is a rebound-adjustable configuration.

Design & features

  • Closed, pressurised shock design to support consistent damping behaviour
  • Oil/gas separation via an internal separation piston
  • Supplied as a complete rear shock assembly (with spring fitted)

Tuning Controls

  • Rebound damping adjustment

Base Setup (factory preset)

This shock is supplied with a baseline internal setup from Tractive. Final ride quality will depend on rider weight, load and intended use, and may require adjustment and/or spring rate matching where applicable.

Before You Install

  • Confirm fitment for your KTM 690 DUKE and model year before installation
  • Check clearance around the shock body and any adjacent components during suspension travel
  • Installation should be completed by a qualified technician using correct torque procedures

Serviceability/Lifecycle

As a sealed, pressurised unit with internal oil/gas separation, this shock is designed to be maintained through periodic servicing to keep performance consistent as oil and seals wear. Service intervals will vary with usage and conditions.

Need Help Choosing?

If you’re unsure whether rebound-only adjustment suits your riding or you need help matching setup to your load and conditions, contact Teknik Motorsport with your bike details and typical use.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT12-R1103-TR
Model # 46KT12-R1103-TR
Barcode # 46KT12R1103TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-CITE
Format Rear
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 366.0
Spring Rate Standard 85 N/mm
Spring Option -2 75-205
Spring Option Maximum 120-205
Spring Option +1 90-205
Spring Option -1 80-205
Spring Option +2 95-205
Damping System Emulsion oil/gas
Rebound Adjuster Position 8 (90 deg)
Spring Preload Setting 13
Preload Adjustment Mechanical
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 85-205
Stroke Metal to Metal (mm) 62.0
Type Code X-CITE
