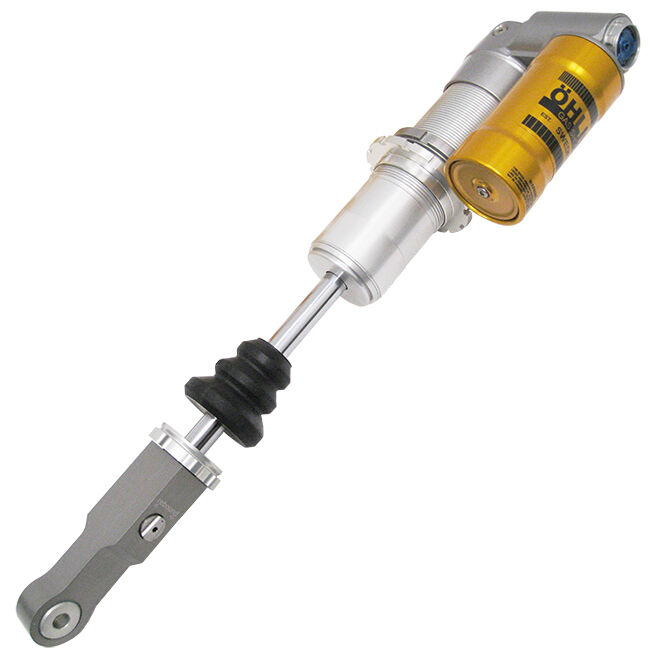

The Ohlins DMX1214 is a rear shock unit from the TTX Flow DV family for selected KTM SX-F, XC-F, SX and XC models. It is built around a gas-pressurised damping design to help maintain consistent damping behaviour as conditions and temperatures change. This unit is intended for riders who want a wider, more controlled tuning window than standard components.

Ohlins | Made to race, perfected to ride

Ohlins off-road shocks are engineered for repeatable damping control and clear adjuster response. The DMX1214 is designed to support predictable traction and chassis stability across changing track or trail conditions.

Shock design & features

  • Rear mono shock configuration for KTM fitment listed.
  • Gas-pressurised damping system.
  • Independent damping circuits to separate key functions for more precise tuning.

Tuning controls

This shock provides external adjustments for rebound damping and compression damping. Compression is separated into low-speed and high-speed compression adjustment, allowing targeted changes to chassis attitude and bump absorption without relying on a single compromise setting.

Before you install

  • Spring is supplied separately; select a suitable spring before installation.
  • Notes indicate suitability for a 06310-series spring and that preload adjuster 15000-02 fits this shock.
  • This unit replaces DMX 0214.

Serviceability/lifecycle

As a performance shock, the DMX1214 is designed to be serviced and re-oiled as part of normal maintenance. Recommended Ohlins oil is listed as 01304-.

Is it right for you?

Choose this unit if you want a rear shock with gas-pressurised damping and independent rebound and compression control, including separate low-speed and high-speed compression adjustment. If you prefer a simpler setup with fewer external adjustments, a different configuration may be more suitable.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU DMX1214
Model # T46PR1C2W
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 457.0
Type Code T46PR1C2W
Stroke Metal to Metal (mm) 137.0
Product Family TTX Flow DV
Notes 06310- series spring. Preload adjuster 15000-02 fits this shock. *Replaces DMX 0214*
Fitted Spring Sold separately, see notes.
Rec. Ohlins Oil 01304-
