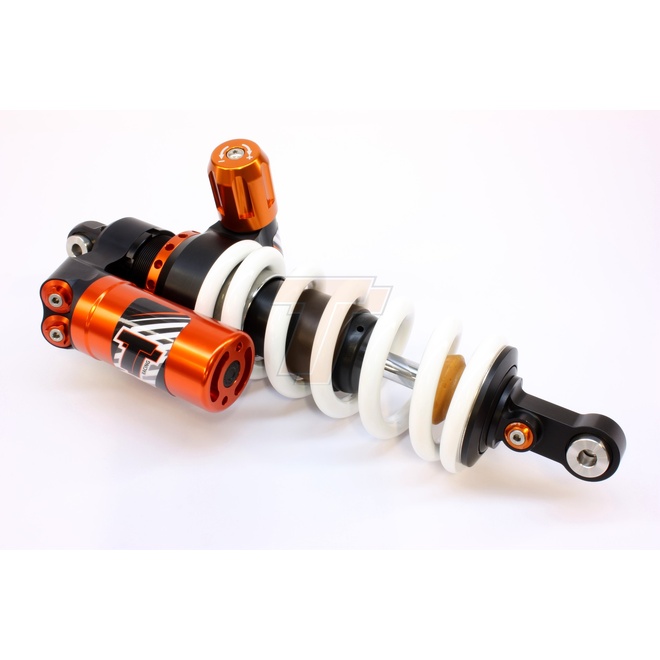

The Tractive X-TREME shock for the KTM 1290 Super Adventure R is a closed, pressurised damper built around a sealed cartridge architecture. This design keeps the damping oil and gas consistently controlled, helping maintain stable performance over long, demanding rides. It is configured with external adjustment to tailor the damping to load, surface and riding style.
Design & features
- Closed, pressurised design with a sealed cartridge architecture for consistent damping control
- Remote reservoir configuration with oil/gas separation via an internal piston
- Coil spring fitment
Tuning Controls
- Triple-adjustable damping (separate rebound and compression circuits, including high/low-speed compression adjustment)
Who is this for?
- Riders who want broad damping adjustability for mixed on-road and off-road use
- Owners who routinely change load (luggage/passenger) and prefer a shock with the tuning range to match
Before You Install
- Confirm model fitment for your KTM 1290 Super Adventure R and your specific year/variant before installation
- Plan reservoir placement and hose routing (where applicable) to avoid heat and abrasion points
- Set sag and baseline adjustments after installation to suit your weight, load and typical terrain
Serviceability/Lifecycle
- Pressurised, serviceable construction intended for periodic maintenance to keep damping performance consistent over time
- Routine inspection of mounting hardware and reservoir lines helps prevent wear-related issues
Need Help Choosing?
- If you share your typical riding conditions, load and priorities (comfort vs control), we can help guide initial setup and tuning direction
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
 When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46KT21-T5343-TR |
| Model # | 46KT21-T5343-TR |
| Barcode # | 46KT21T5343TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 390.0 |
| Spring Rate Standard | 160 N/mm |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 71.0 |
| Notes | PDSII anti-bottoming |
| Fitted Spring | 160-180 |
