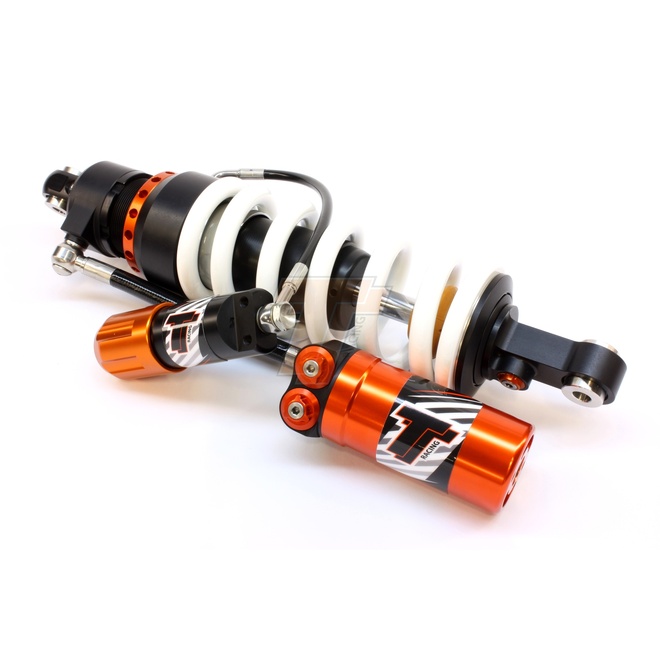

The Tractive X-TREME shock for the Triumph Tiger 800 XC uses a closed, pressurised design with an oil/gas separation piston and a fixed reservoir to maintain damping consistency over long, rough rides. It features a coil spring and a fixed hydraulic preload adjuster to suit load changes without tools. Rebound and both compression circuits are externally adjustable for targeted setup changes.
Design & features
- Closed, pressurised shock design for stable damping and reduced cavitation risk
- Oil/gas separated by a piston, with a fixed reservoir
- Coil spring with fixed hydraulic preload adjuster
Tuning Controls
- Rebound damping adjustment
- Compression damping adjustment (two circuits)
- Hydraulic preload adjustment
Who is this for?
- Riders who vary luggage or passenger load and want quick preload changes
- Adventure and touring use where consistent damping feel matters
- Owners who prefer broad external damping control for setup tuning
Before You Install
- Confirm model fitment for your Tiger 800 XC and check clearance around the fixed reservoir
- Set sag and preload for your typical riding load before fine-tuning damping
- After installation, re-check fasteners and settings after initial rides
Serviceability/Lifecycle
- Pressurised, separated-gas architecture is designed for consistent performance and is serviceable
- Periodic servicing helps maintain damping control as oil and seals age with use
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46TR15-T7507-TR |
| Model # | 46TR15-T7507-TR |
| Barcode # | 46TR15T7507TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME |
If your Motorcycle is listed below, this product will suit:
- TRIUMPH TIGER 800 XC 2010
- TRIUMPH TIGER 800 XC 2011
- TRIUMPH TIGER 800 XC 2012
- TRIUMPH TIGER 800 XC 2013
- TRIUMPH TIGER 800 XC 2014
- TRIUMPH TIGER 800 XC 2015
- TRIUMPH TIGER 800 XC 2016
- TRIUMPH TIGER 800 XC 2017
- TRIUMPH TIGER 800 XC 2018
- TRIUMPH TIGER 800 XC 2019
- TRIUMPH TIGER 800 XC 2020
- TRIUMPH TIGER 800 XC 2021
- TRIUMPH TIGER 800 XC 2022
- TRIUMPH Tiger 800 XCx 2015
- TRIUMPH Tiger 800 XCx 2016
- TRIUMPH Tiger 800 XCx 2017
- TRIUMPH Tiger 800 XCx 2018
- TRIUMPH Tiger 800 XCx 2019
- TRIUMPH Tiger 800 XCx 2020
- TRIUMPH Tiger 800 XCx 2021
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 362.0 |
| Spring Rate Standard | 110 N/mm |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 83.0 |
| Notes | PDSII anti-bottoming |
| Fitted Spring | 110-205 |
