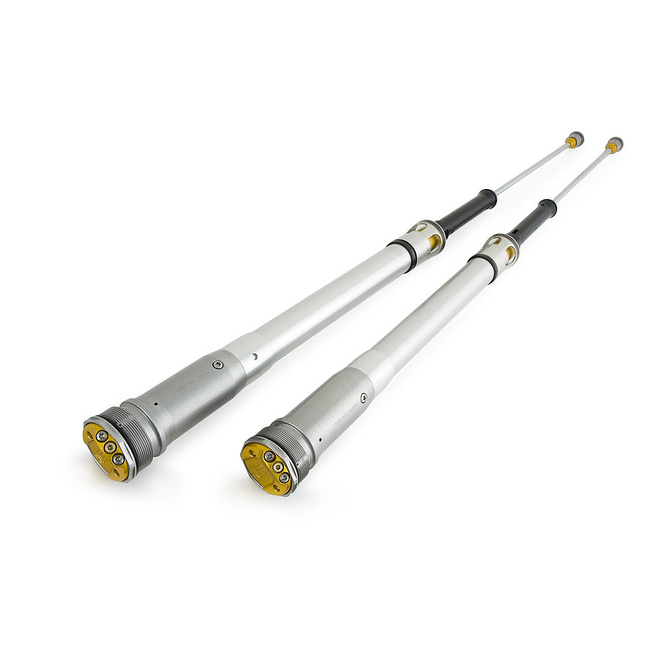

The Ohlins FCX0101 STX 22 Fork Cartridge Kit is a front suspension upgrade developed for KTM 85 SX models across the listed year ranges. It replaces the fork’s internal damping components to deliver a more controlled, consistent feel through a wider range of conditions. This kit is intended for riders who want greater tuning scope and a clearer connection to front-end grip.

Ohlins | Made to race, perfected to ride

Ohlins cartridge kits are designed to provide stable, repeatable damping behaviour with tuning controls that support proper setup for the rider and track. The goal is predictable fork response under braking, through turn-in, and across changing surface loads.

Who this kit is for

  • KTM 85 SX riders looking for improved front-end control and feel
  • Riders who want a broader, more usable tuning range than standard internals
  • Those chasing more consistent damping performance over a moto or session

Shock design & features

  • STX 22 fork cartridge kit design
  • Refined damping characteristics to support braking stability and mid-corner feel
  • Premium internal components aimed at durability and consistent performance

Tuning controls

  • Compression adjustment
  • Rebound adjustment

Before you install

  • Confirm fitment for KTM 85 SX 14/17 and 85 SX 16/19 as listed for FCX0101
  • Installation and setup should be carried out by a qualified suspension technician
  • Plan to set sag and balance the chassis after installation to suit rider weight and riding conditions

Need help choosing?

If you’re unsure whether this cartridge kit suits your KTM 85 SX build, share your model year, rider weight, typical track conditions, and current fork setup so the correct option and baseline settings can be confirmed.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FCX0101
Model # S22DR1C1
Barcode # FCX0101
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code S22DR1C1
Stroke Metal to Metal (mm) 273.0
Product Family STX 22
Notes 08789- spring series *Replaces FCX 101-21*
Rec. Ohlins Oil 01330-
