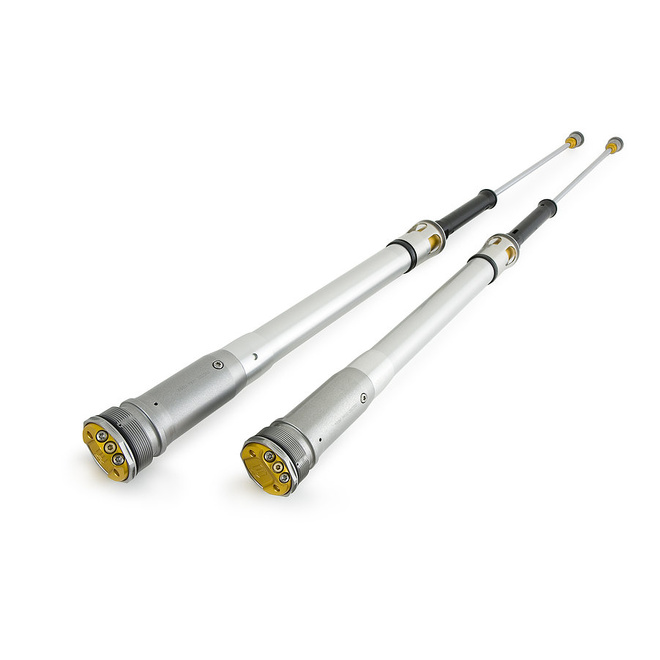

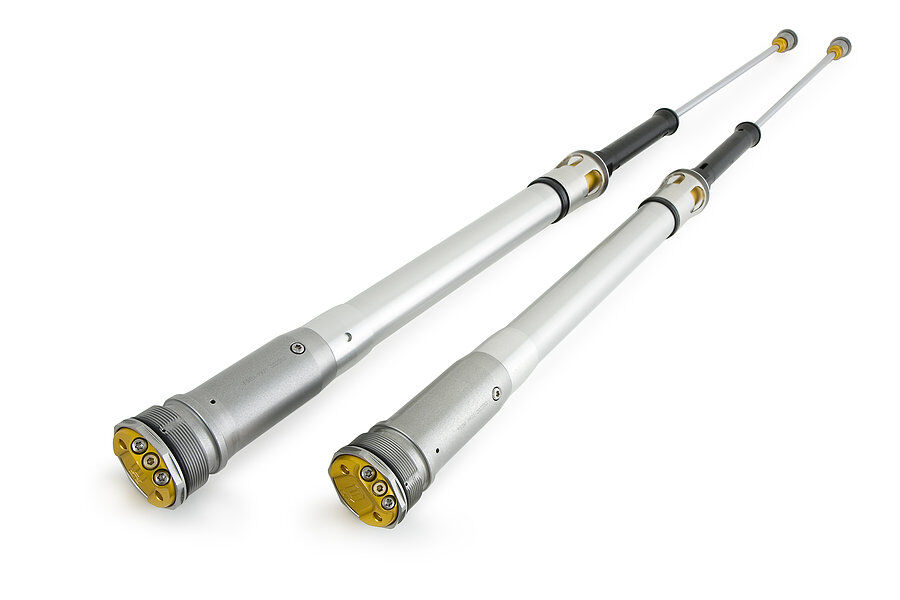

The Ohlins FCX204 TTX 22 fork cartridge kit is a front suspension upgrade developed for select KTM SX and XC-W TPI models. It is designed to deliver a more controlled, consistent front end feel through improved damping performance. With external adjusters for compression and rebound, it supports straightforward tuning to suit rider preference and conditions.
Ohlins | Made to race, perfected to ride
Ohlins suspension components are built with a focus on damping control, repeatability and serviceability. The FCX204 cartridge kit brings that approach to the front fork, targeting stability and clearer feedback at the handlebar.
Who this cartridge kit is for
- Riders chasing better front-end feel and control on their KTM
- Owners who want improved stability under braking and through corners
- Those who value adjustability for changing terrain and riding pace
Shock design & features
- TTX 22 fork cartridge front kit
- Premium internal components intended to support consistent damping performance
- Aimed at improving braking stability and mid-corner feel
Tuning controls
- Separate compression adjustment
- Separate rebound adjustment
Before you install
- Confirm fitment for your KTM model and market: 125/150 SX; 125/150/250 SX (USA/CAN/AUS/NZ/MEX); 150/250/300 XC-W TPI (USA/CAN/AUS/NZ/MEX)
- Installation requires fork disassembly and correct setup practices
- Plan for setup time after installation to match your riding conditions
Need help choosing?
If you’re unsure whether the FCX204 is the right match for your KTM or your riding style, share your model details and the type of terrain you ride. We can help narrow down the best Ohlins option and a sensible starting setup.
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FCX204 |
| Model # | TTX Cartridge kit |
| Barcode # | FCX204 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Fork Length (mm) | 950.0 |
| Stroke Metal to Metal (mm) | 302.0 |
| Product Family | TTX 22 |
| Notes | 08765- series springs Model was called TX 300 until and including year model 2019 *Replaced by FCX 0204* |
| Fitted Spring | Sold separately, see notes. |
| Rec. Ohlins Oil | 01330- |
