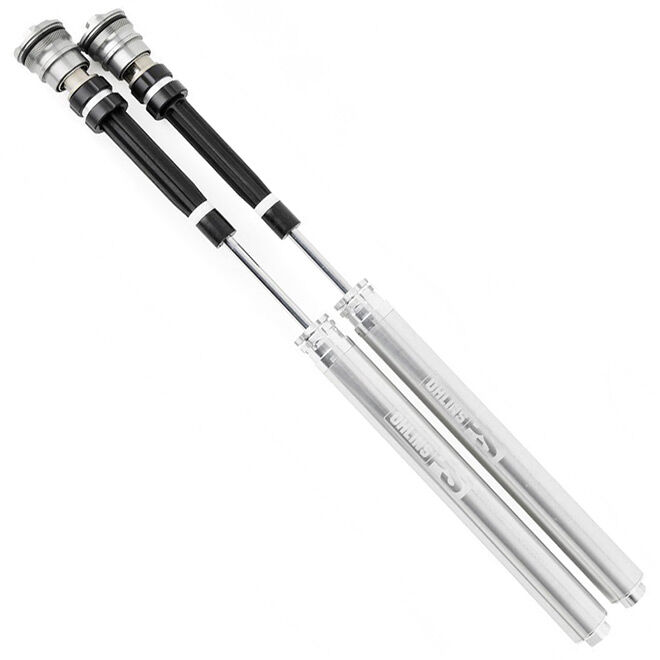

The Ohlins FKR104 fork cartridge kit is designed to improve front-end control and feel on BMW HP 4 and S 1000 RR models. It focuses on delivering more consistent damping behaviour for confident braking and corner entry. The result is a more composed front end that’s easier to tune for your riding conditions.

Ohlins | Made to race, perfected to ride

Ohlins cartridge kits replace the internal damping system inside the fork to deliver more controlled, repeatable performance. This upgrade targets feedback, stability and adjustability without changing the external fork legs.

Who this cartridge kit is for

  • BMW HP 4 and S 1000 RR riders chasing clearer front-end feedback
  • Road riders who want improved braking stability and support
  • Occasional track riders who need accessible, effective tuning range

Shock design & features

  • Fork cartridge kit built to improve damping control and consistency
  • Premium internal components aimed at durability under demanding use
  • Designed to increase front-end confidence through corners and under brakes

Tuning controls

  • Separate compression adjustment for controlling fork support and brake dive behaviour
  • Separate rebound adjustment for managing return speed and stability between bumps and corners

Before you install

  • Professional installation is recommended to ensure correct assembly, oil level and settings
  • Confirm application and fitment for your exact BMW model and year before ordering
  • Plan for setup time after installation to match your weight, tyres and riding style

Need help choosing?

If you’re deciding between cartridge options or want guidance on baseline settings for your BMW HP 4 or S 1000 RR, contact Teknik Motorsport with your bike details and intended use.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FKR104
Model # TTX25S
Barcode # FKR104
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Type Code TTX25S
Stroke Metal to Metal (mm) 120.0
Product Family FKR 100
Notes Comes with 3 different spring rates: 9.5 ,10 & 10.5N/mm *Replaces FGR 162*
Fitted Spring Sold separately. See notes.
Rec. Ohlins Oil 01309-
