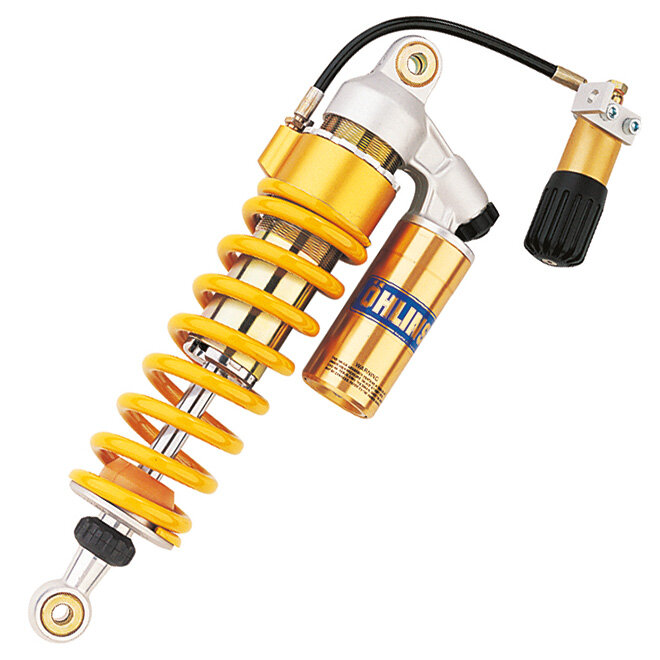

The Ohlins HD250 STX 46 Custom & Heritage rear shock is built for riders who want a more controlled, composed feel from their Harley-Davidson Pan America without losing the bike’s character. It combines Ohlins damping know-how with a finish suited to custom and heritage-inspired builds. Designed as a rear mono shock application, it’s aimed at improving stability and comfort through better damping control.

Ohlins | Made to race, perfected to ride

Ohlins suspension is developed with a focus on consistent damping behaviour and predictable feedback. This model sits within the STX 46 Custom & Heritage family, pairing modern function with a classic-minded presentation suited to custom-focused motorcycles.

Shock design & features

This is an oil/gas separated rear shock layout, intended to maintain damping consistency over a wide range of riding conditions. It’s supplied with an Ohlins spring fitted from the factory for the intended application.

Tuning controls

  • Rebound damping adjustment to control how the shock returns after compression
  • Compression damping adjustment to manage support and impact absorption
  • Preload adjustment to set ride height and spring support for load and rider preference

Before you install

Confirm fitment for your exact Pan America model and any existing ride height or adaptive systems, as some versions may not be compatible. After installation, set sag and then fine-tune damping to suit your load, tyres, and typical roads.

Serviceability / lifecycle

As with other Ohlins units, routine servicing helps keep damping performance consistent over time. Periodic inspection for leakage, shaft condition, and bushing wear is recommended, especially if the bike sees frequent rough-road or touring use.

SKU HD250
Model # S46PR1C1S
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 398.5
Spring Rate Standard 100.0 N/mm
Type Code S46PR1C1S
Stroke Metal to Metal (mm) 80.0
Product Family STX 46 Custom & Heritage
Notes Do not fit S version with adaptive ride height.
Fitted Spring: 00698-34
Rec. Ohlins Oil 01309-
