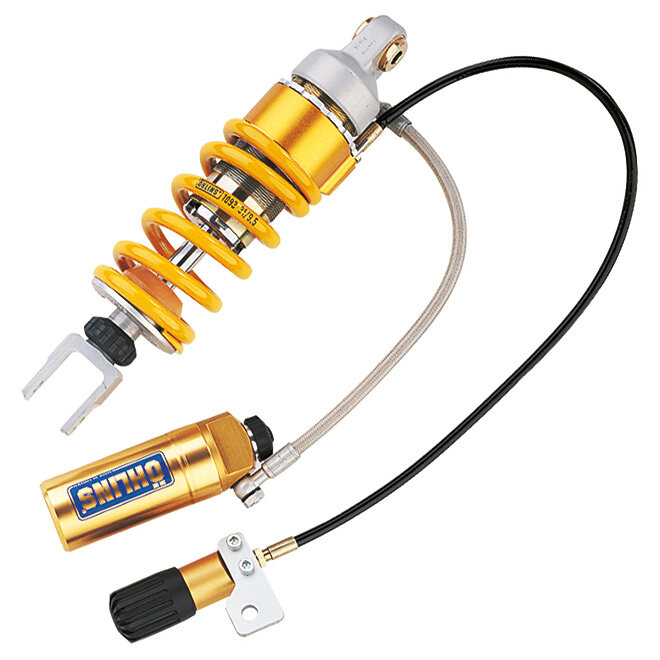

Name: Ohlins HD517 STX 46 American V-Twin Shock Rear for Harley-Davidson Softail Breakout, Softail Fat Boy, Softail Low Rider S, Softail Low Rider ST
Brand: Ohlins
SKU: HD517
Price: 1999.95 AUD
Availability: PreOrder

Description
Information

The Ohlins HD517 STX 46 American V-Twin rear shock is built for Harley-Davidson Softail fitments where controlled damping and ride stability matter. It uses a monotube design with a separated oil and gas layout to support consistent damping behaviour as conditions change. Tuning is straightforward, with external adjusters to match rider preference and load.

Ohlins | Made to race, perfected to ride

Developed from Ohlins performance suspension experience, this rear unit is intended to deliver predictable chassis control on the road. The STX architecture focuses on maintaining damping stability and clean feedback through the rear end.

Who this shock is for

Softail riders wanting improved damping control over the standard rear shock
Owners who change load (solo vs luggage) and want tunability
Riders who value consistent feel across varied road surfaces

Shock design & features

Rear monotube shock design
Separated oil and gas construction to reduce fade and support stable damping
STX 46 American V-Twin platform intended for Harley-Davidson Softail applications

Tuning controls

Rebound damping adjustment
Compression damping adjustment

Before you install

Confirm the application list matches your exact Softail model and year
Inspect related mounting hardware and bushes during installation
Set up adjustments methodically after fitment so changes are easy to track

Serviceability/lifecycle

Ohlins shocks are serviceable units designed to be maintained over time. Periodic servicing helps keep damping performance consistent and extends component life.

SKU	HD517
Model #	S46HR1C1S
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Rear Mono
Shock Length Eye to Eye (mm)	341.0
Spring Rate Standard	115.0 N/mm
Type Code	S46HR1C1S
Stroke Metal to Metal (mm)	56.5
Product Family	STX 46 American V-Twin
Fitted Spring:	21102-41
Rec. Ohlins Oil	01309-
