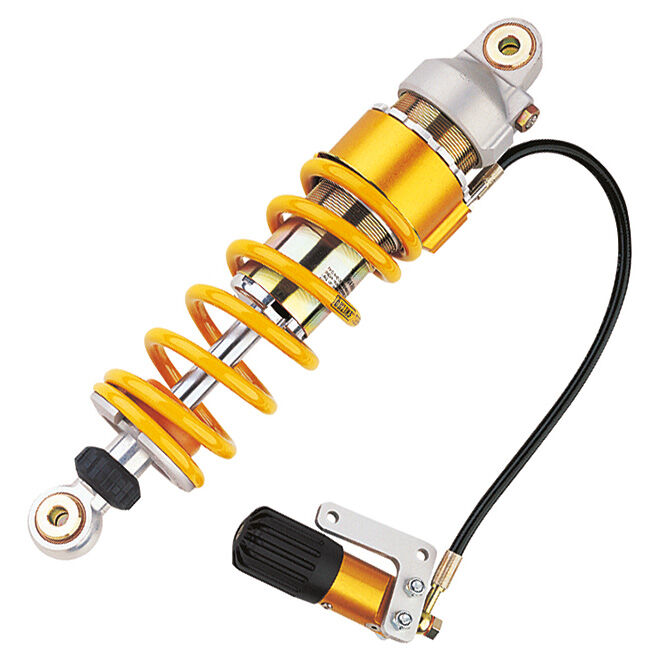

Name: Ohlins HD514 STX 46 Custom & Heritage Shock Rear for Harley-Davidson Softail Deluxe, Softail Low Rider, Softail Low Rider S, Softail Slim, Softail
Brand: Ohlins
SKU: HD514
Price: 1880.94 AUD
Availability: PreOrder

Description
Information

The Ohlins HD514 STX 46 Custom & Heritage rear shock is built for Harley-Davidson Softail models where ride control and classic styling both matter. It is designed to improve stability and comfort without changing the character of a custom or heritage-inspired build. This unit is supplied as a rear shock application.

Ohlins | Made to race, perfected to ride

Ohlins suspension is engineered around consistent damping behaviour and reliable adjustment. The STX 46 Custom & Heritage range focuses on controlled performance in a package suited to cruiser and custom applications.

Who this shock is for

Suited to riders who want a more composed, settled rear end on a Softail for everyday road riding and touring. It is also a sensible choice for owners refreshing a worn original shock while keeping a traditional look and feel.

Shock design & features

This STX 46 Custom & Heritage rear shock uses an oil/gas separated damping layout to help maintain damping consistency. It is a single rear shock unit supplied with a fitted spring.

Tuning controls

Rebound damping adjustment to tailor how quickly the shock extends after a bump
Spring preload adjustment to set ride height and support for load and riding style

Before you install

Confirm fitment for your exact Softail model and year, and note this unit replaces HD 504
Set sag and preload with the bike at typical riding load before fine-tuning rebound
Inspect mounting hardware and bushings during installation

Serviceability/lifecycle

Ohlins shocks are designed to be serviced to maintain performance over time. Routine inspection and periodic oil service will help keep damping consistent and extend component life.

SKU	HD514
Model #	S46DR1S
Barcode #	HD514
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Rear Mono
Shock Length Eye to Eye (mm)	320.5
Spring Rate Standard	105.0 N/mm
Type Code	S46DR1S
Stroke Metal to Metal (mm)	43.5
Product Family	STX 46 Custom & Heritage
Notes	Replaces HD 504
Fitted Spring:	21102-36
Spring Colour	Black
Rec. Ohlins Oil	01309-
