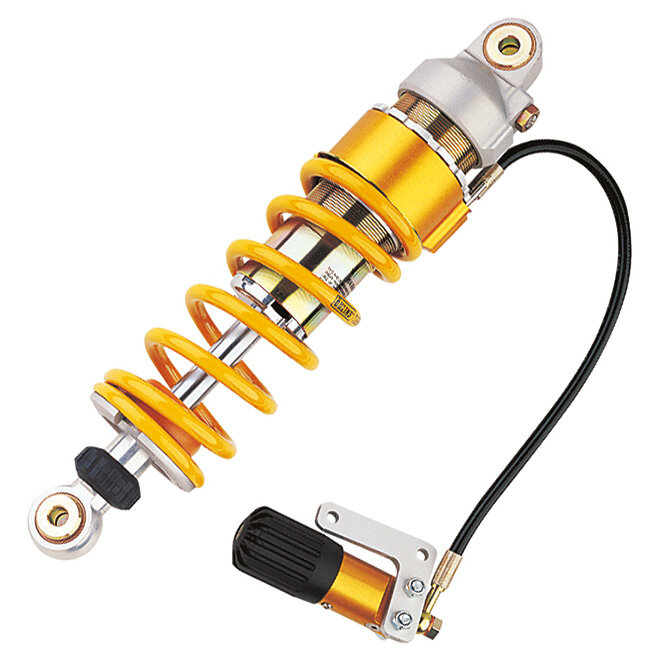

The Ohlins HD513 STX 46 Custom & Heritage rear shock is engineered to deliver superior performance and control for Harley-Davidson Softail motorcycles. Combining timeless styling with modern suspension technology, this shock absorber enhances ride quality by providing adjustable compression, rebound, and preload settings. It maintains the authentic ride character of classic and custom builds while improving comfort, stability, and handling. The shock features a length of 320.5 mm and a stroke of 43.5 mm, fitted with a 21102-36 spring to suit cruiser and custom applications. Its high-quality finishes ensure it complements the aesthetic of vintage and custom motorcycles, making it an elegant upgrade for riders seeking both style and performance.

Key Features

Modern damping with adjustable compression, rebound, and preload
Preserves authentic ride feel with enhanced comfort and control
High-quality finishes designed for classic and custom motorcycle builds
Specifically tailored for Harley-Davidson Softail Breakout, FXDR 114, Fat Boy, and Sport Glide

SKU	HD513
Model #	S46DR1S
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Rear Mono
Shock Length Eye to Eye (mm)	320.5
Spring Rate Standard	105.0 N/mm
Type Code	S46DR1S
Stroke Metal to Metal (mm)	43.5
Product Family	STX 46 Custom & Heritage
Notes	Replaces HD 503
Fitted Spring:	21102-36
Rec. Ohlins Oil	01309-
