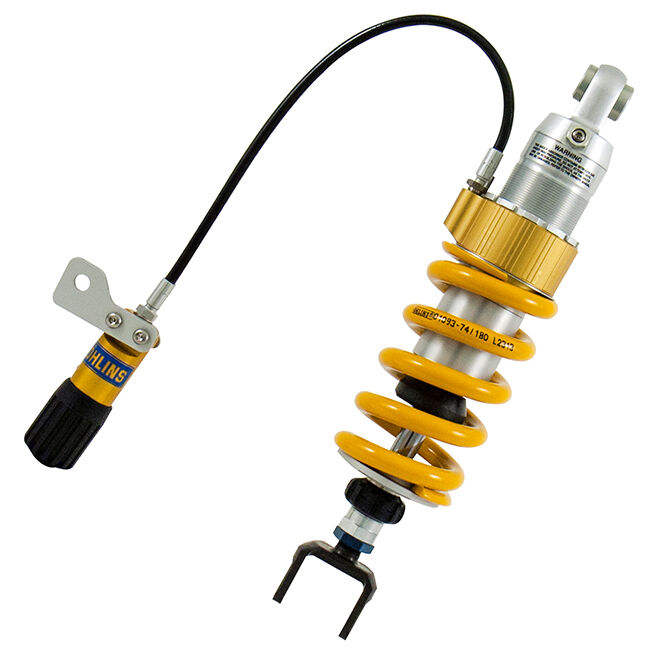

Name: Ohlins SU813 STX 46 Street Shock Rear for Suzuki C 1800
Brand: Ohlins
SKU: SU813
Price: 1869.94 AUD
Availability: PreOrder

Description
Information

The Ohlins STX 46 Street rear shock for Suzuki C 1800 is built to improve rear wheel control and ride quality in real-world road use. It uses a gas-pressurised, oil/gas separated damping design to help maintain consistent response over changing conditions. The architecture supports accurate adjustment so you can tune feel without making the bike harsh.

Ohlins | Made to race, perfected to ride

Ohlins street shocks draw from established damping technology, focused on predictable grip and stability. The aim is controlled movement through the stroke, with clear feedback when the bike is loaded up through corners or under braking.

Shock design & features

STX 46 Street rear shock format for road riding
Gas-pressurised damping with oil/gas separation for consistent control
Supplied with a fitted spring

Tuning controls

Rebound damping adjustment
Spring preload adjustment

Base setup (factory preset)

This shock is delivered with an Ohlins baseline setup intended as a starting point for the Suzuki C 1800. Use it as your reference, then adjust rebound and preload to suit load, tyres, and preferred ride feel.

Before you install

Confirm the application and mounting details for your exact model variant before installation. After fitting, re-check fasteners and allow time to fine-tune rebound and preload once the spring has settled in normal use.

Serviceability/lifecycle

Ohlins shocks are designed to be serviced to maintain damping quality over time. Regular inspection and periodic servicing will help keep performance consistent, especially if the bike sees frequent two-up riding or rougher roads.

SKU	SU813
Model #	S46DR1LS
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Rear Mono
Shock Length Eye to Eye (mm)	323.5 0/-12
Spring Rate Standard	210.0 N/mm
Type Code	S46DR1LS
Stroke Metal to Metal (mm)	43.5
Product Family	STX 46 Street
Fitted Spring	21118-89
Spring Colour	Yellow
Rec. Ohlins Oil	01309-
