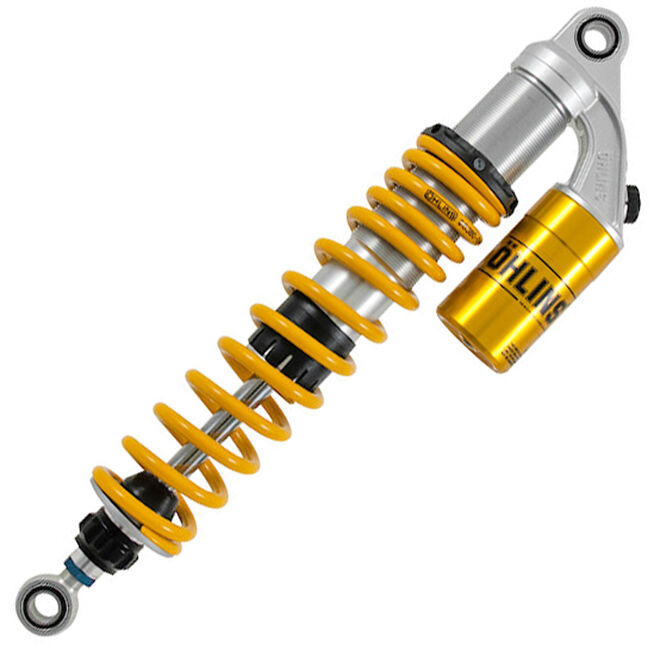

Name: Ohlins YA557 STX 36 Twin shock Rear for Yamaha XJR 1300
Brand: Ohlins
SKU: YA557
Price: 1874.95 AUD
Availability: PreOrder

Description
Information

The Ohlins YA557 STX 36 Twin rear shock package is built for the Yamaha XJR 1300 and suited to riders who want more composure, grip and feel from the back of the bike. It uses a pressurised damping design to keep damping consistent as conditions change. Adjustment is provided for rebound and compression damping, plus length for ride-height tuning.

Ohlins | Made to race, perfected to ride

Ohlins street shocks draw on race-developed damping knowledge, then are configured for real-road use. The result is improved control through corners, better traction on exit, and more stable behaviour under load changes.

Shock design & features

STX 36 Twin rear shock configuration for twin-shock applications
Pressurised oil/gas design (not an emulsion shock) to support consistent damping
Supplied with matched springs as fitted by Ohlins for this application

Tuning controls

Rebound damping adjustment to manage return speed after bumps and load transfer
Compression damping adjustment to control squat and support under acceleration and braking
Length adjustment to fine-tune rear ride height and chassis attitude

Base setup (factory preset)

This unit is delivered with an Ohlins baseline setup intended to be a safe starting point for the XJR 1300. From there, fine adjustment can be made to match tyres, load, road surface and rider preference.

Before you install

Confirm correct fitment for your Yamaha XJR 1300 model and year, and check clearance around exhaust and guards
Set sag and verify full travel clearance before riding
After installation, re-check fasteners and alignment after the first rides

Serviceability/lifecycle

Ohlins shocks are designed to be serviceable so performance can be maintained over time. Periodic servicing helps keep damping consistent and protects internal components from wear and contamination.

SKU	YA557
Model #	S36PR1C1L
Brand	Ohlins
Shipping Weight	5.0000kg
Shipping Size	0.300 x 0.300 x 0.500m
Type	Units

See our Shipping Information See our Frequently Asked Questions

Position (Front or Rear)	Rear Twin
Shock Length Eye to Eye (mm)	325.0 +10/-0
Spring Rate Standard	22.0 - 39.0 N/mm Progressive
Type Code	S36PR1C1L
Stroke Metal to Metal (mm)	92.0
Product Family	STX 36 Twin
Fitted Spring:	00379-01
