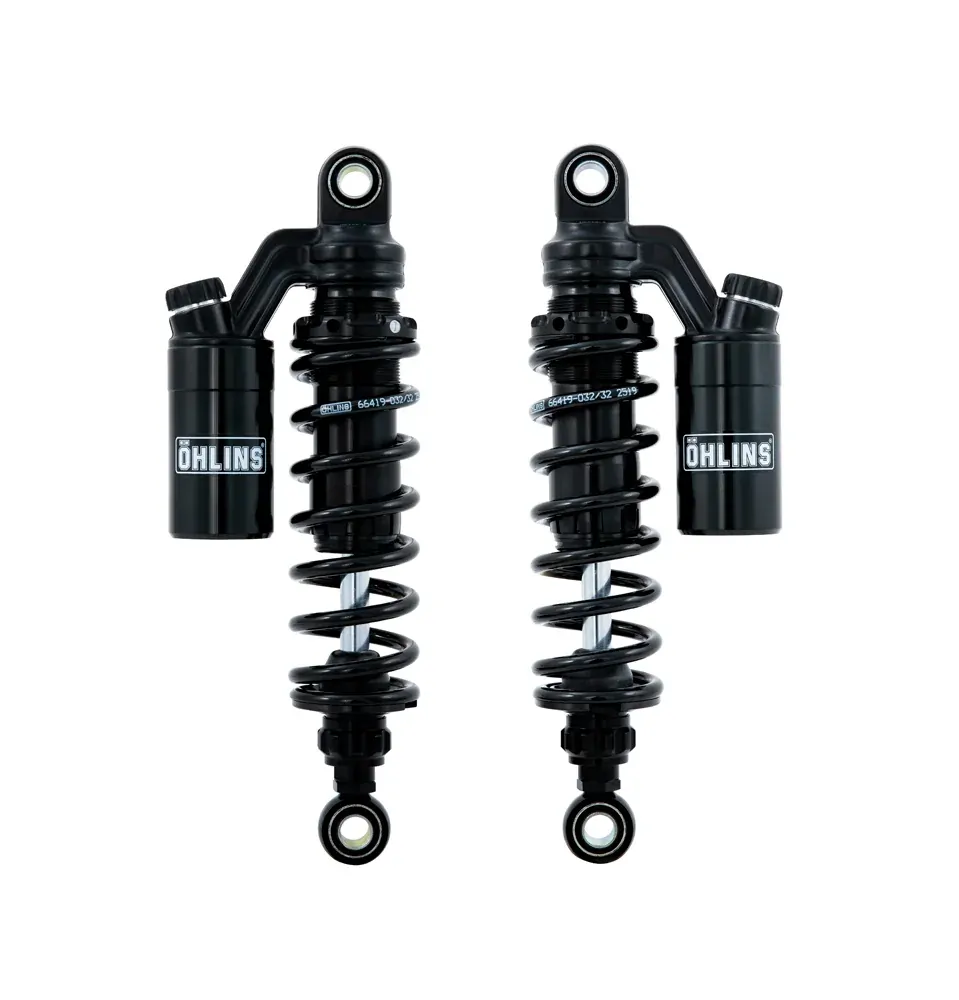

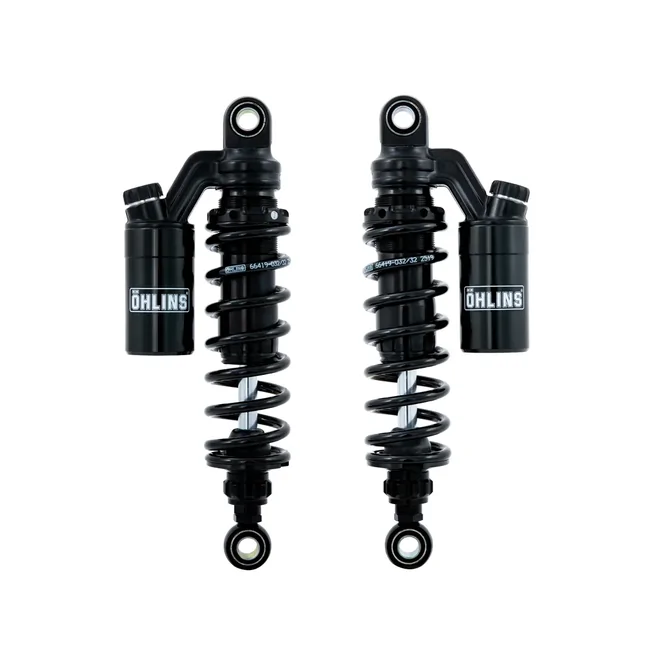

The Ohlins TR654 STX 36 Blackline rear shock pair is a direct-fit upgrade for the Triumph Bonneville T100 and Bonneville T120. Designed to suit twin-shock rear ends, it focuses on improved damping control and a more composed ride while keeping a classic appearance. This set is built around Ohlins’ STX 36 Blackline architecture for consistent behaviour across a range of road conditions.

Ohlins | Made to race, perfected to ride

Ohlins suspension is developed with a focus on controlled damping, predictable feedback and long-term serviceability. The Blackline finish is intended to complement heritage styling without compromising on functional hardware.

Who this shock is for

  • Triumph Bonneville T100 and T120 owners wanting a matched rear shock pair with a classic look
  • Riders chasing better stability and comfort from the rear end on everyday road riding
  • Builds that need quality damping control without changing the character of the bike

Shock design & features

  • STX 36 Blackline rear twin shocks
  • Oil/gas separated design for stable damping behaviour
  • Supplied as a complete rear pair for left/right fitment

Tuning controls

  • Spring preload adjustment
  • Rebound damping adjustment
  • Compression damping adjustment

Before you install

  • Confirm fitment for Triumph Bonneville T100 and Bonneville T120 models
  • Set sag and baseline adjusters after installation to suit rider load and typical use
  • Inspect mounting hardware and bushes during fitment and re-check fasteners after the first ride

Serviceability/lifecycle

These shocks are designed to be serviced to maintain damping performance over time. Regular inspection and periodic oil service will help keep feel and control consistent as kilometres accumulate.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU TR654
Model # S36PR1C1L (B)
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Twin
Shock Length Eye to Eye (mm) 348.0 +10/-0
Spring Rate Standard 15.0 - 24.0 N/mm Progressive
Type Code S36PR1C1L (B)
Stroke Metal to Metal (mm) 99.0
Product Family STX 36 Blackline
Fitted Spring 60480-51
Spring Colour Black
Rec. Ohlins Oil 01309-
