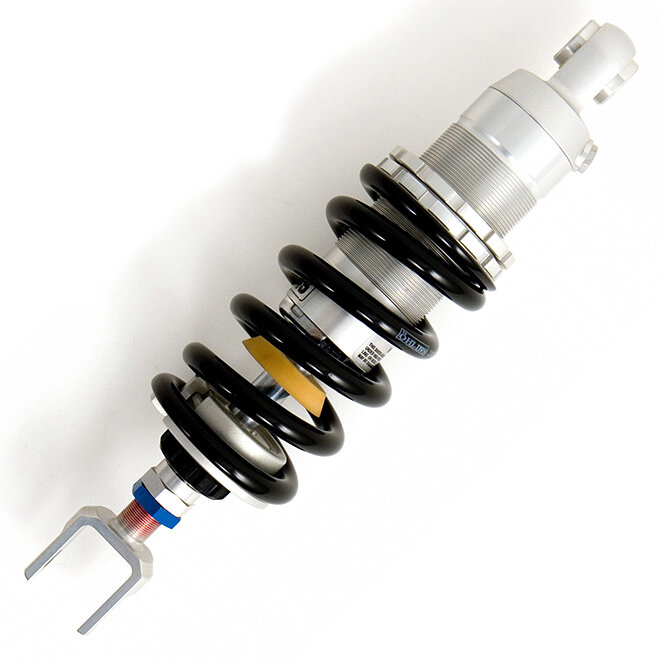

The Ohlins STX 46 Street rear shock for the Yamaha XVS 650A Drag Star Classic is built to deliver controlled damping and predictable chassis behaviour on the road. It uses a monotube design with a piston separating oil and gas to help maintain consistency during extended riding. Designed as a direct-fit rear unit, it’s intended to improve stability and ride quality without making the bike feel harsh.

Ohlins | Made to race, perfected to ride

Ohlins road shocks apply the same engineering approach used across their performance suspension range, focused on stable damping control and tunability. The STX 46 Street family is aimed at riders who want a more composed rear end and clearer feedback from the chassis.

Who this shock is for

  • Riders wanting better control and consistency from the rear suspension on the XVS 650A Drag Star Classic
  • Owners looking for a quality replacement/upgrade shock with external adjustability
  • Road-focused riding where stability and comfort both matter

Shock design & features

  • Monotube architecture with a separating piston between oil and gas (oil/gas separated design)
  • Ohlins STX 46 Street construction aimed at controlled damping and stability
  • Rear mono shock fitment for the listed model application

Tuning controls

  • Rebound damping adjustment
  • Length adjustment

Before you install

  • Confirm fitment for Yamaha XVS 650A Drag Star Classic and check clearance around the shock and linkage area
  • Set sag and rebound to suit rider load and typical road conditions after installation
  • If you’re changing springs or servicing, note the fitted spring part number is supplied in the product data

Serviceability/lifecycle

This Ohlins unit is designed to be maintained over its life with periodic servicing to keep damping performance consistent. Service intervals depend on use and conditions, particularly if the bike sees frequent wet or dirty roads.

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU YA710
Model # S46DR1L
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.300 x 0.300 x 0.500m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear Mono
Shock Length Eye to Eye (mm) 278.5 0/-12
Spring Rate Standard 140.0 N/mm
Type Code S46DR1L
Stroke Metal to Metal (mm) 32.5
Product Family STX 46 Street
Fitted Spring 21116-54
Spring Colour Yellow
Rec. Ohlins Oil 01309-
