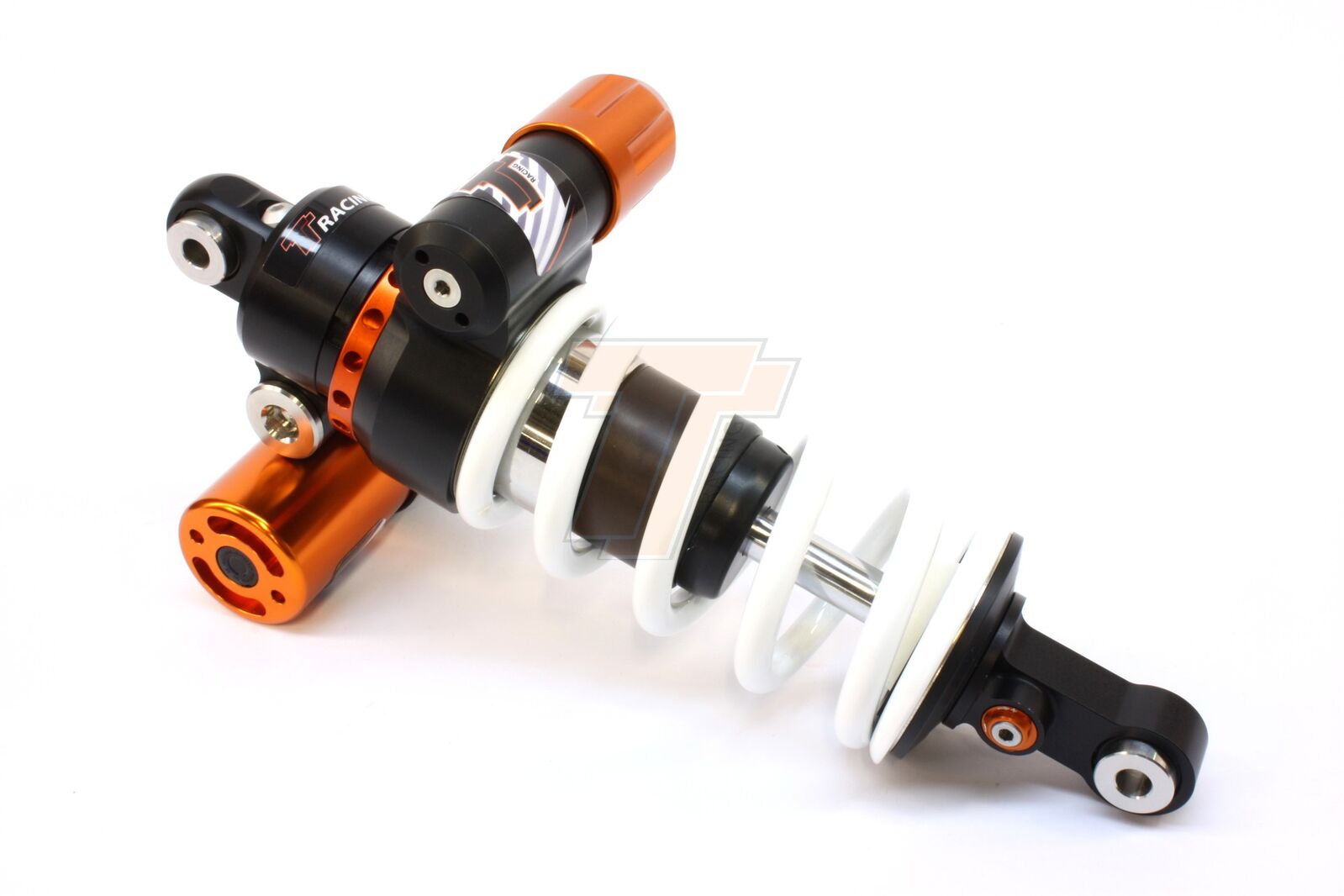

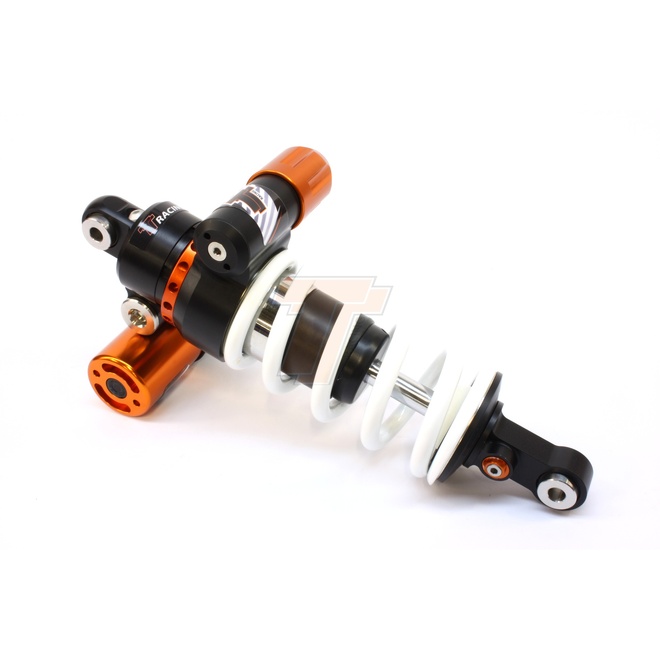

The TracTive X-TREME rear shock for the KTM 790 ADVENTURE R is a closed, pressurised damper built around a sealed cartridge architecture for consistent oil control and reduced aeration under hard use. This version is configured with a lowered ride height of -30 mm to help bring the bike down without changing the core shock layout. The damping system is designed to offer external tuning so you can tailor feel and control to your load and riding conditions.

Design & features

  • Closed, pressurised sealed-cartridge construction for stable damping performance
  • Remote reservoir design with oil/gas separation via an internal piston
  • Lowered configuration: -30 mm ride height change

Tuning Controls

  • Triple-adjustable damping: rebound, compression, and an additional compression circuit adjustment

Who is this for?

  • Riders who want a lowered rear ride height on the KTM 790 ADVENTURE R
  • Owners who prefer broad external damping adjustability for varying loads, terrain, and pace

Before You Install

  • Confirm the lowered -30 mm configuration suits your intended geometry and ground clearance needs
  • Ensure access and routing space for the remote reservoir as part of the installation plan

Serviceability/Lifecycle

  • Designed as a serviceable unit, with pressurised internals intended to be maintained over time by suspension specialists

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46KT19-T9332-TR
Model # Active Feb 2025
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME + HPA
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Lowered -30
Shock Length Eye to Eye (mm) 370.0
Type Code X-TREME
Stroke Metal to Metal (mm) 81.0
