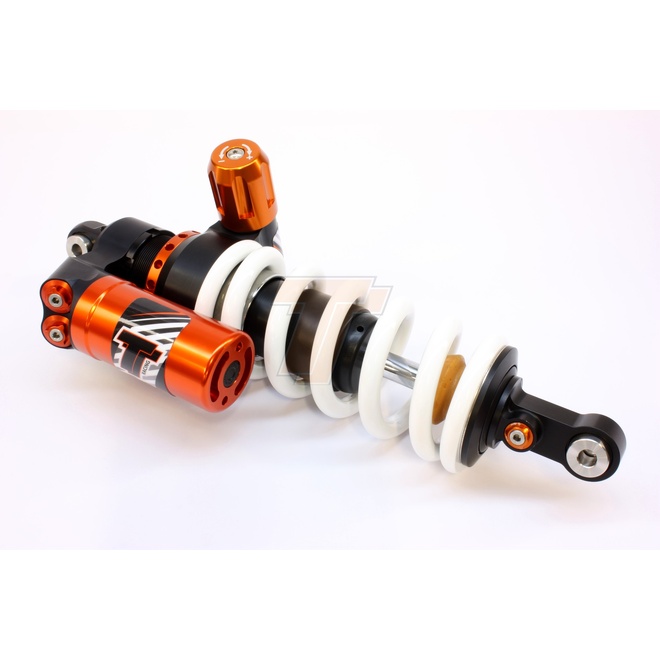

The Tractive X-PERIENCE rear shock for the BMW R nineT Urban G/S is a closed, pressurised mono shock built around a separated oil/gas design to maintain consistent damping over long rides. It uses an external reservoir and provides a triple-adjustable layout for fine control. This model includes a spring and a hydraulic preload adjuster for convenient setup changes.

Design & features

  • Closed, pressurised shock with oil/gas separation via an internal piston
  • External reservoir (fixed reservoir configuration)
  • Supplied with spring
  • Hydraulic preload adjuster for tool-free preload changes

Tuning Controls

  • Rebound damping adjustment
  • Compression damping adjustment
  • Additional damping adjustment as part of the triple-adjustable configuration

Base Setup (factory preset)

The shock is supplied with a factory baseline tune intended as a starting point. Final settings should be adjusted to suit rider weight, luggage load and riding conditions.

Before You Install

  • Confirm fitment to your BMW R nineT Urban G/S and check for clearance around the reservoir and adjusters
  • Set sag and preload after installation, then fine-tune damping adjustments incrementally
  • If you regularly change loads (passenger/luggage), note your preload and damping settings for repeatable setup

Serviceability/Lifecycle

As a pressurised, separated oil/gas shock, this unit is designed to be serviceable with routine maintenance to keep damping performance consistent over time.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM16-T4390-TR-01
Model # 46BM16-T4390-TR-01
Barcode # 46BM16T4390TR01
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-PERIENCE
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 373.0
Spring Rate Standard 140 N/mm
Type Code X-PERIENCE
Stroke Metal to Metal (mm) 54.0
Fitted Spring 140-180
