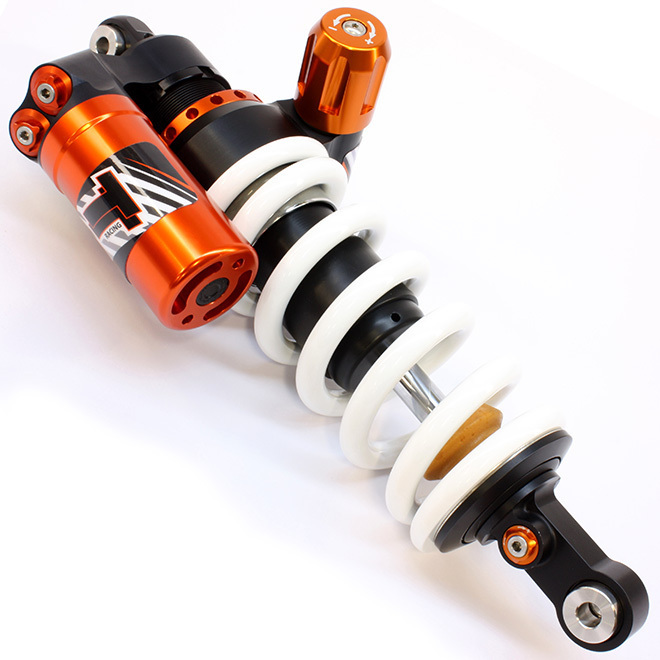

The TracTive X-PERIENCE + HPA rear shock for the BMW R nineT Urban G/S (2016–2020) is a closed, pressurised monotube design with a separated oil/gas layout to maintain consistent damping over a wide range of conditions. It includes external adjusters for rebound and both low- and high-speed compression, plus a hydraulic preload adjuster for easier load changes. This model is supplied as a complete rear shock assembly.
Design & features
- Closed, pressurised monotube shock construction
- Separated oil/gas design (not an emulsion shock)
- Remote reservoir configuration
- Hydraulic preload adjuster (HPA) for on-bike preload changes
Tuning Controls
- Rebound damping adjustment
- Low-speed compression damping adjustment
- High-speed compression damping adjustment
- Hydraulic preload adjustment (HPA)
Who is this for?
- BMW R nineT Urban G/S owners (2016–2020) who want broader tuning range for varying road surfaces and loads
- Riders who regularly alternate between solo and luggage/pillion use and want quick preload changes via HPA
Before You Install
- Confirm fitment for BMW R nineT Urban G/S model years 2016–2020
- Plan mounting and access for the remote reservoir and the hydraulic preload adjuster
- Set a baseline by noting the current adjuster positions before making changes
Serviceability/Lifecycle
- Designed as a rebuildable shock, supporting inspection and servicing over its working life
- Keeping the shock serviced helps maintain damping consistency and seal performance
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46BM16-T4390-TR-02 |
| Model # | Discontinued |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-PERIENCE + HPA |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 373.0 |
| Type Code | X-PERIENCE |
| Stroke Metal to Metal (mm) | 54.0 |
