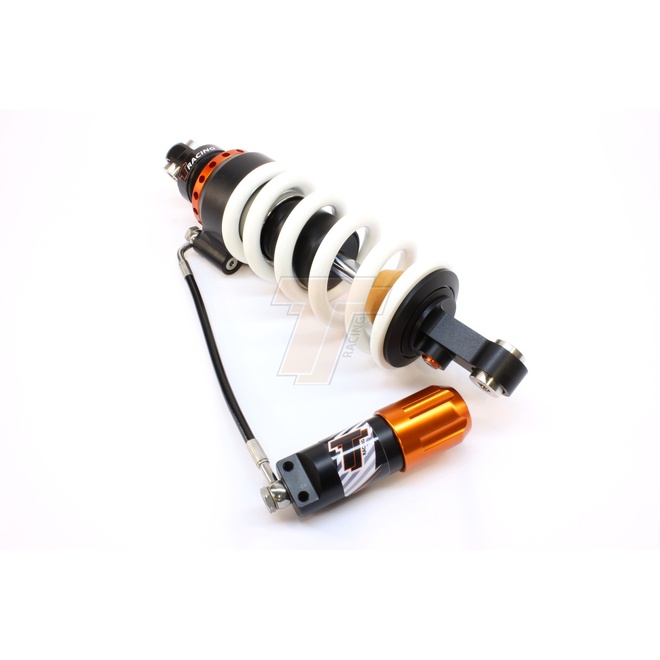

The Tractive X-CITE shock for the BMW R 1150 GS is a closed, pressurised monotube damper built around a 46 mm piston architecture to maintain consistent damping and reduce aeration under sustained use. This configuration uses a separated oil and gas design via an internal separation piston rather than an emulsion layout. Rebound damping adjustment is provided, along with a coil spring and a fixed hydraulic preload adjuster for practical load changes.
Design & features
- Closed, pressurised monotube construction for consistent damping behaviour
- Separated oil and gas using an internal separation piston (not an emulsion shock)
- Coil spring supplied
- Hydraulic preload adjuster fitted in a fixed (non-remote) configuration
Tuning Controls
- Rebound damping adjustment
- Hydraulic preload adjustment
Base Setup (factory preset)
Baseline damping and spring setup are configured by Tractive for the BMW R 1150 GS application, with rebound and preload available to fine-tune feel and support for rider load and luggage.
Before You Install
- Set sag and preload for your typical load (solo, luggage, or pillion) before fine-tuning rebound
- After installation, re-check fasteners and clearances after the first rides
- If you are replacing a worn shock, allow time to dial in rebound to match tyre choice and riding conditions
Serviceability/Lifecycle
As a pressurised monotube design, correct servicing requires controlled depressurisation and recharging, along with fresh oil and seals as required. Periodic servicing helps maintain damping consistency over time, especially with regular touring or rough-road use.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46BM99-R3525-TR |
| Model # | 46BM99-R3525-TR |
| Barcode # | 46BM99R3525TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
| Format | Rear |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Lowered -25 |
| Shock Length Eye to Eye (mm) | 375.0 |
| Spring Rate Standard | 150 N/mm |
| Spring Option -2 | 130-180 |
| Spring Option +1 | 160-180 |
| Spring Option -1 | 140-180 |
| Spring Option +2 | 170-180 |
| Manufacturer Note 1 | Side and/or center stand might be too long |
| Damping System | Separated oil/gas |
| Rebound Adjuster Position | 10 (270 deg) |
| Spring Preload Setting | 17 +7,5/-7,5 |
| Preload Adjustment | Hydraulic, with knob |
| Spring Type | Linear, included |
| Piston Diameter (mm) | 46 |
| Suspension Unit Type | Shock |
| Fitted Spring | 150-180 |
| Stroke Metal to Metal (mm) | 66 |
| Type Code | X-CITE |
