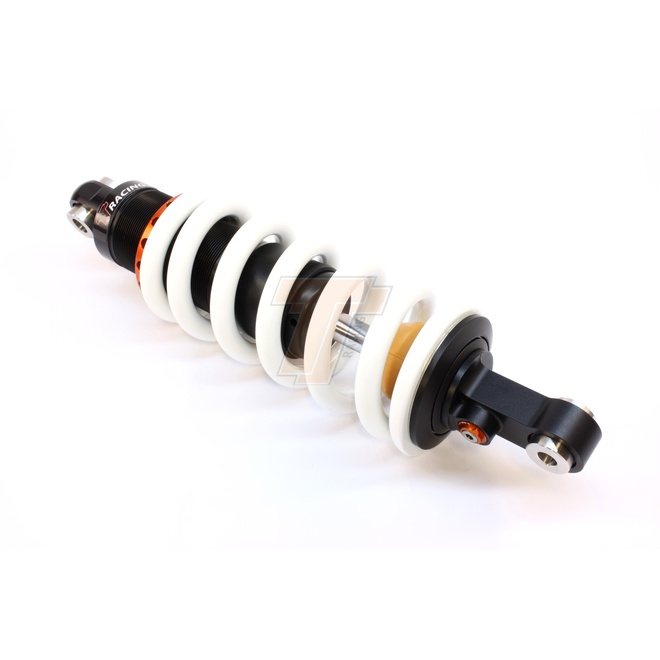

The Tractive X-CITE shock for the Honda VFR1200X Crosstourer is a closed, pressurised mono-shock built around a sealed 46 mm shock body. This configuration keeps damping performance consistent by separating the gas and oil with an internal piston rather than relying on an emulsion layout. It is supplied with a spring and is designed as a direct-fit replacement shock for the model application.

Design & features

  • Closed, pressurised shock design for consistent damping behaviour.
  • Oil and gas are separated by an internal separation piston (not an emulsion shock).
  • Sealed architecture intended to reduce aeration and maintain control across changing conditions.
  • Includes shock spring.

Tuning Controls

  • Rebound damping adjustment.

Base Setup (factory preset)

Factory settings are pre-set by Tractive for the intended application. Fine-tuning is performed via the rebound adjuster to suit load, tyres and riding conditions.

Before You Install

  • Confirm model fitment for your Honda VFR1200X Crosstourer and production year before installation.
  • Set sag and ride height after installation to suit rider load and typical luggage/passenger use.

Serviceability/Lifecycle

As a pressurised, sealed shock with separated oil and gas, the unit is intended to be maintained through periodic servicing to keep damping consistent over its lifecycle.

Is It Right For You?

This shock suits riders who want a quality, serviceable rear suspension unit with rebound adjustment and a pressurised, separated oil/gas internal design. If you need additional adjustment functions beyond rebound, consider your tuning requirements before purchase.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46HO12-R3105-TR
Model # 46HO12-R3105-TR
Barcode # 46HO12R3105TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-CITE
Format Rear
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 332.0
Spring Rate Standard 160 N/mm
Spring Option -2 140-180
Spring Option +1 170-180
Spring Option -1 150-180
Spring Option +2 180-180
Damping System Separated oil/gas
Rebound Adjuster Position 8
Spring Preload Setting 21
Preload Adjustment Mechanical
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 160-180
Stroke Metal to Metal (mm) 63.6
Stroke Metal to Metal (mm) 63-6
Type Code X-CITE
