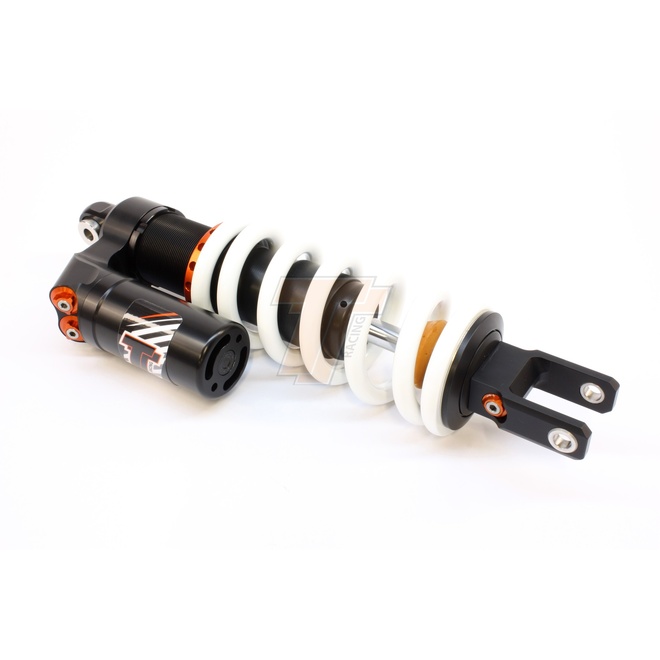

The Tractive X-TREME Shock for the Honda XL750 Transalp is a closed, pressurised rear shock designed around a sealed cartridge architecture. This configuration helps maintain consistent damping by keeping the oil under controlled pressure and reducing aeration in demanding conditions. It is built as a spring-equipped shock assembly.

Design & features

  • Closed, pressurised design with a sealed cartridge to support consistent damping behaviour.
  • Remote reservoir configuration.
  • Supplied as a spring-equipped shock.

Tuning Controls

  • Triple adjustable damping: compression, rebound, and a second compression circuit for broader tuning range.

Who is this for?

  • Riders who want wider adjustment range for changing loads, road surfaces, and mixed terrain use.
  • Owners setting up a Transalp for touring or more demanding riding where repeatable damping is important.

Before You Install

  • Confirm model fitment for your Honda XL750 Transalp and your intended usage (solo, luggage, passenger) before setup.
  • Have sag and baseline damping set after installation so the available adjusters can be used effectively.

Serviceability/Lifecycle

  • Pressurised, sealed designs are intended to maintain damping consistency; periodic servicing helps keep performance stable over time.

Need Help Choosing?

  • If you’re unsure whether you need triple adjustability or help selecting an initial setup direction, provide your riding style and typical load so the configuration can be matched appropriately.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46HO23-T5123-TR
Model # 46HO23-T5123-TR
Barcode # 46HO23T5123TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Seat Height Change (mm) Lowered -25
Shock Length Eye to Eye (mm) 339.0
Spring Rate Standard 100 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 75.0
Notes PDSII anti-bottoming
Fitted Spring 100-205
