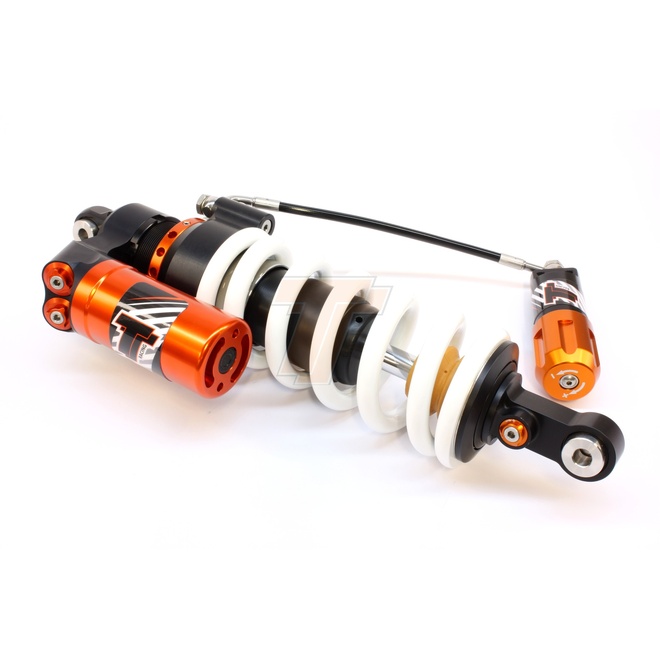

The Tractive X-TREME rear shock for the KTM 950R Super Enduro is a closed, pressurised design that keeps the damping oil and gas separated for consistent control on rough terrain. It uses a remote reservoir layout and includes a coil spring, with an integrated hydraulic preload adjuster for convenient spring preload changes. This model provides triple damping adjustment, giving you independent control over the shock’s behaviour across a range of conditions.
Design & features
- Closed, pressurised shock architecture with oil/gas separation for consistent damping
- Remote reservoir configuration
- Supplied with a spring
- Hydraulic preload adjuster integrated on the shock body
Tuning Controls
- Triple-adjustable damping (separate compression and rebound controls)
- Preload adjustment via the hydraulic preload adjuster
Who is this for?
- KTM 950R Super Enduro riders who want broad external adjustability for mixed on-road and off-road use
- Owners who prefer a pressurised, oil/gas-separated shock design for stable performance over long, rough rides
Before You Install
- Confirm model fitment for your KTM 950R Super Enduro before ordering
- Plan access and mounting for the remote reservoir and ensure the hose routing is clear of heat and moving parts
Serviceability/Lifecycle
- Serviceable pressurised shock with separated oil and gas for repeatable performance between services
- Set up and service intervals should match how and where the bike is used
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
 When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46KT07-T5510-TR |
| Model # | 46KT07-T5510-TR |
| Barcode # | 46KT07T5510TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 392.0 |
| Spring Rate Standard | 140 N/mm |
| Spring Free Length (mm) | 205 |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 93.0 |
| Notes | PDSII anti-bottoming |
| Fitted Spring | 140-205 |
