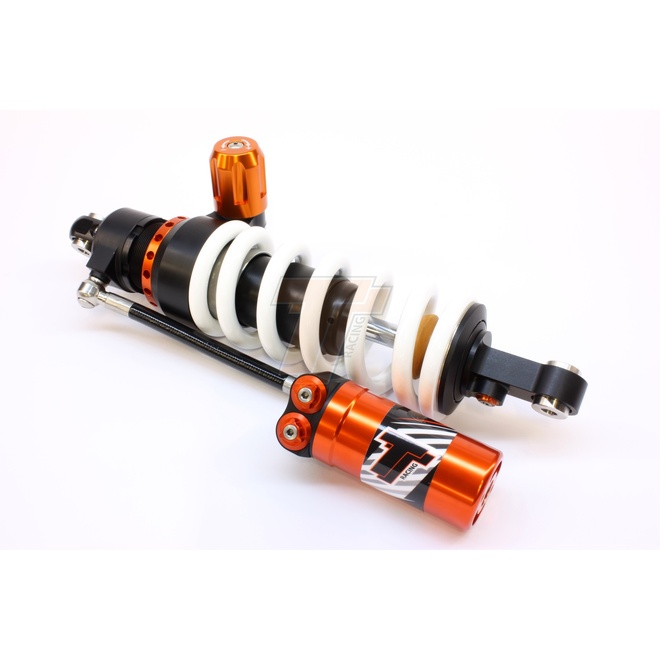

The Tractive X-PERIENCE shock for the Triumph 1200 Explorer is a closed, pressurised 46 mm rear shock designed around a separated oil and gas layout for consistent damping over long rides. It uses an external reservoir for increased oil volume and better heat management. This model includes a remote hydraulic preload adjuster to simplify load changes for luggage or a passenger.

Design & features

  • Closed, pressurised shock construction for stable, fade-resistant damping behaviour
  • Oil/gas separation via an internal separation piston
  • External reservoir (fixed) to help maintain damping consistency as temperatures change
  • Supplied as a complete shock unit with spring

Tuning Controls

  • Triple-adjustable damping: rebound plus both low-speed and high-speed compression adjustment
  • Remote hydraulic preload adjuster for quicker preload changes without tools at the shock body

Base Setup (factory preset)

The shock is delivered with a baseline setting intended to provide a balanced starting point. From there, you can fine-tune preload for load and ride height balance, then adjust rebound and compression to match your road conditions and riding style.

Who is this for?

  • Triumph 1200 Explorer riders who tour with varying loads and want easy preload changes
  • Owners wanting broad damping control for mixed road conditions
  • Riders prioritising consistent damping feel from a pressurised, separated oil/gas shock design

Before You Install

  • Confirm the shock matches your exact Triumph 1200 Explorer application before fitting
  • Plan cable/hose routing and mounting for the remote hydraulic preload adjuster and reservoir
  • After installation, set preload first, then adjust damping in small steps and test ride between changes

Serviceability/Lifecycle

This is a rebuildable, serviceable shock design. Periodic servicing helps maintain damping performance and seal life, particularly for high-mileage touring or harsh conditions.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46TR12-T6303-TR
Model # 46TR12-T6303-TR
Barcode # 46TR12T6303TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-PERIENCE
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 374.0
Spring Rate Standard 130 N/mm
Type Code X-PERIENCE
Stroke Metal to Metal (mm) 75.0
Fitted Spring 130-205
