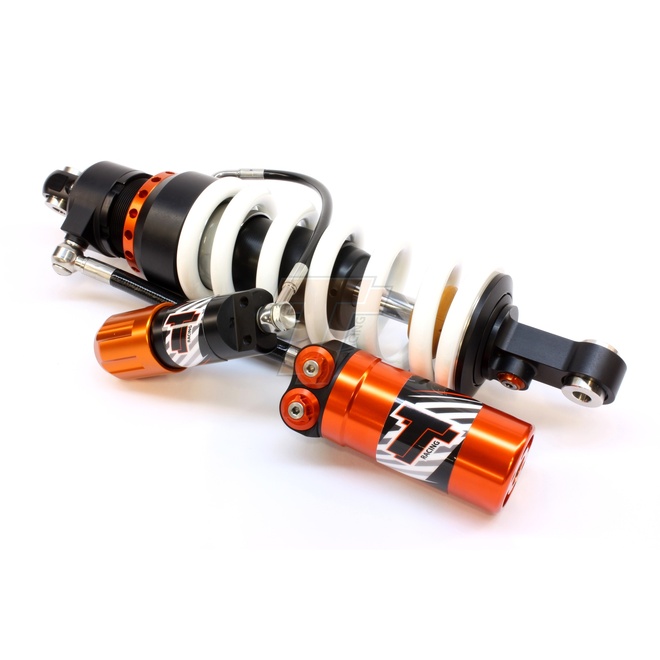

The Tractive X-TREME shock for the Triumph Tiger 800 XR is a 46 mm, closed and pressurised rear shock designed around a sealed cartridge architecture to keep damping consistent over long, mixed-surface rides. Its triple-adjustable layout gives you separate control over key damping circuits, helping you tune feel and stability without changing core hardware. This unit is supplied with a spring.
Design & features
- Closed, pressurised shock design to help maintain damping consistency and reduce aeration
- Sealed cartridge architecture
- Oil/gas separation via an internal separating piston
- Includes spring
Tuning Controls
- Triple adjustability: rebound damping, compression damping, and a separate high-speed compression circuit
Base Setup (factory preset)
Delivered with a factory baseline tune intended as a starting point. Final settings should be matched to rider weight, load, and typical riding conditions.
Who is this for?
- Riders who want a wider adjustment range to tune comfort and control across changing road and light off-road conditions
- Owners carrying varying loads (luggage/passenger) who prefer being able to re-balance the bike via damping adjustments
Before You Install
- Confirm model fitment for your Triumph Tiger 800 XR before installation
- Check spring rate suitability for your typical rider/load use case
- Have installation performed and settings verified by a qualified technician if you’re not familiar with suspension work
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
 When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46TR15-T7508-TR |
| Model # | 46TR15-T7508-TR |
| Barcode # | 46TR15T7508TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-TREME |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 347.0 |
| Spring Rate Standard | 110 N/mm |
| Type Code | X-TREME |
| Stroke Metal to Metal (mm) | 68.0 |
| Notes | PDSII anti-bottoming |
| Fitted Spring | 110-180 |
