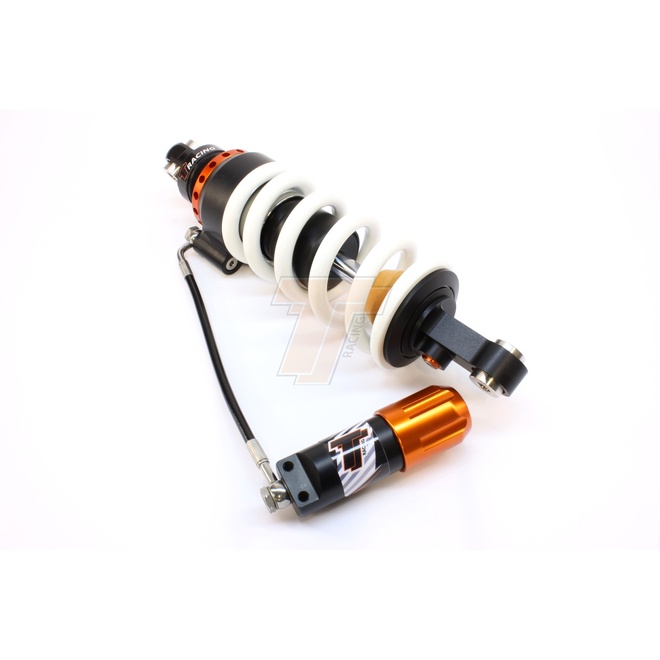

The Tractive X-CITE shock for the Triumph Tiger 800 XC is a closed, pressurised 46 mm rear shock designed around a sealed cartridge architecture. This layout keeps the damping oil and gas separated, supporting consistent behaviour over long and varied rides. It is a mechanical (non-electronic) unit with external adjustment for rebound damping.
Design & features
- Closed, pressurised shock design
- Sealed cartridge construction
- Oil/gas separation using an internal separation piston (not an emulsion design)
- Rear shock format for the listed model fitment
Tuning Controls
- Rebound damping adjustment
Base Setup (factory preset)
Supplied with a baseline internal valving and a standard rebound adjuster range intended to suit general riding. Fine-tuning is done primarily via the rebound adjuster to match load, tyres, and riding conditions.
Before You Install
- Confirm exact motorcycle model and any sub-variant details for your Tiger 800 XC before ordering or fitting.
- Inspect linkage bearings and mounting hardware condition during installation, as worn components can mask suspension performance.
- After fitment, re-check fasteners and verify full, free movement through the suspension travel.
Serviceability/Lifecycle
This shock is a serviceable, closed and pressurised unit. Periodic servicing helps maintain oil condition, gas pressure, and seal performance, especially if used in harsh or high-mileage conditions.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
 When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46TR11-R3502-TR |
| Model # | 46TR11-R3502-TR |
| Barcode # | 46TR11R3502TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
If your Motorcycle is listed below, this product will suit:
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 360.0 |
| Spring Rate Standard | 110 N/mm |
| Type Code | X-CITE |
| Stroke Metal to Metal (mm) | 81.0 |
| Fitted Spring | 110-205 |
