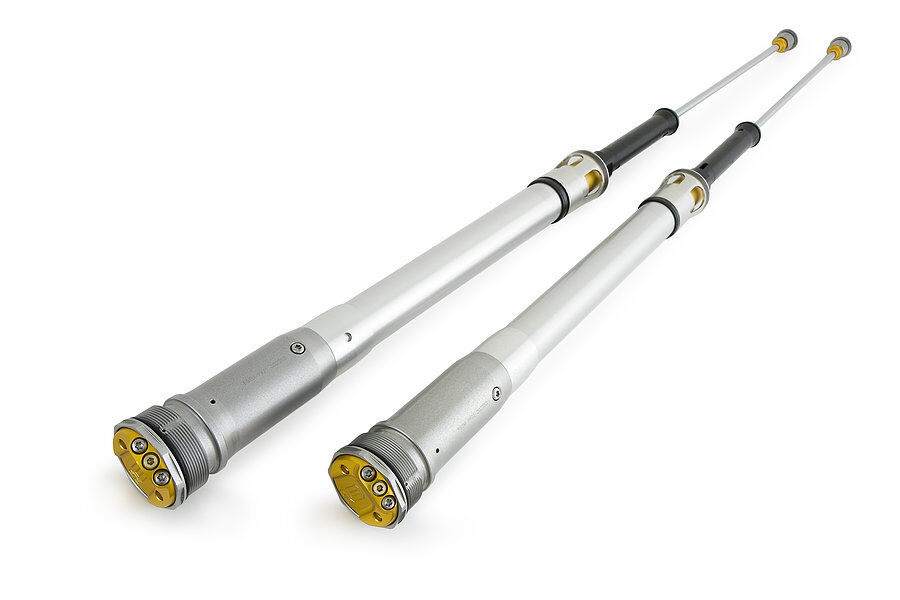

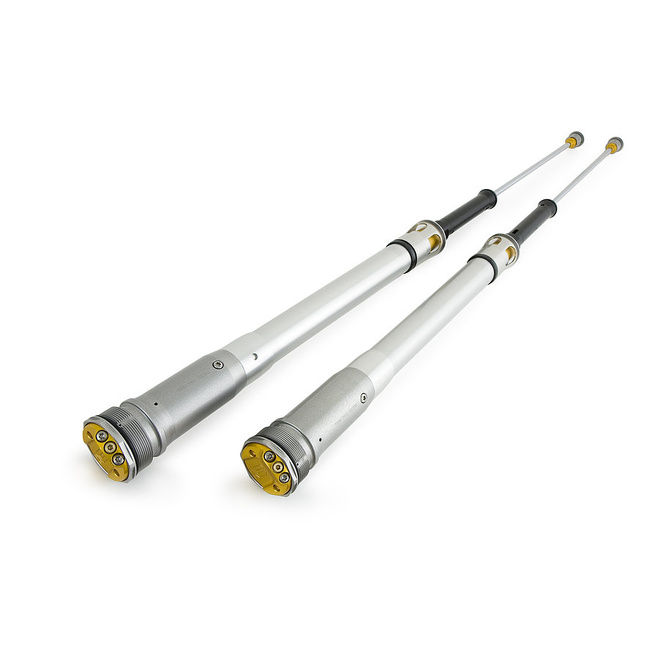

The Ohlins FCX1204 TTX 22 fork cartridge kit is designed to improve front-end control and consistency on compatible KTM models. It focuses on delivering a more composed feel under braking and clearer feedback through the mid-corner. Built around Ohlins cartridge technology, it suits riders chasing more precise damping and adjustability from their standard fork.

Ohlins | Made to race, perfected to ride

Developed from Ohlins racing experience, the TTX 22 cartridge concept is aimed at controlled damping performance and reliable feel across changing conditions. It is intended as a performance-focused internal upgrade rather than a cosmetic change.

Who this kit is for

  • Riders wanting improved braking stability and front-end feedback
  • Track and spirited riding where mid-corner feel and consistency matter
  • Owners looking for tunable damping control beyond typical stock settings

Fork cartridge design & features

  • TTX 22 fork cartridge platform from Ohlins
  • Premium internal components to support consistent damping over time
  • Engineered to deliver a composed and communicative front end

Tuning controls

  • Separate compression and rebound adjustment for targeted setup changes
  • Designed for straightforward tuning to match rider preference and conditions

Before you install

  • Confirm model compatibility before installation
  • Professional installation is recommended to ensure correct assembly and setup
  • Plan to set sag and damping to suit your riding and tyres

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FCX1204
Model # T22DR1C1
Barcode # FCX1204
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code T22DR1C1
Fork Length (mm) 950.0
Stroke Metal to Metal (mm) 302.0
Product Family TTX 22
Notes 08765- spring series *Replaces FCX 0204*
Fitted Spring Sold separately, see notes.
Rec. Ohlins Oil 01330-
