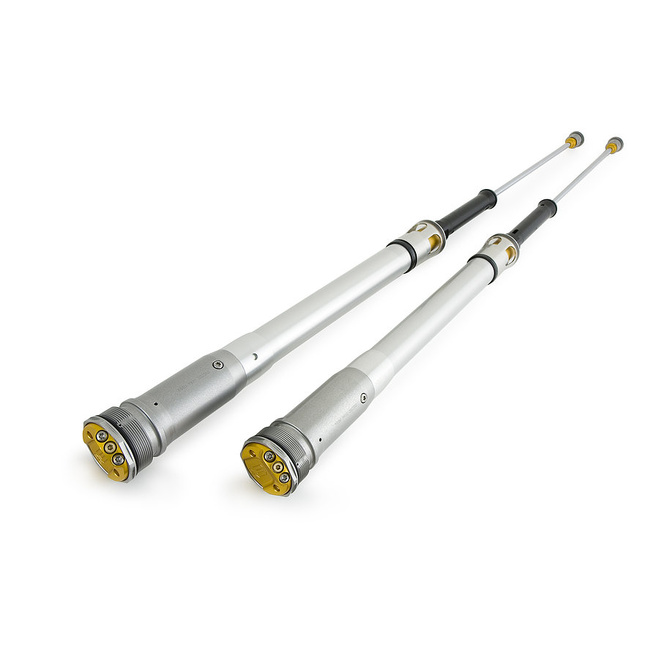

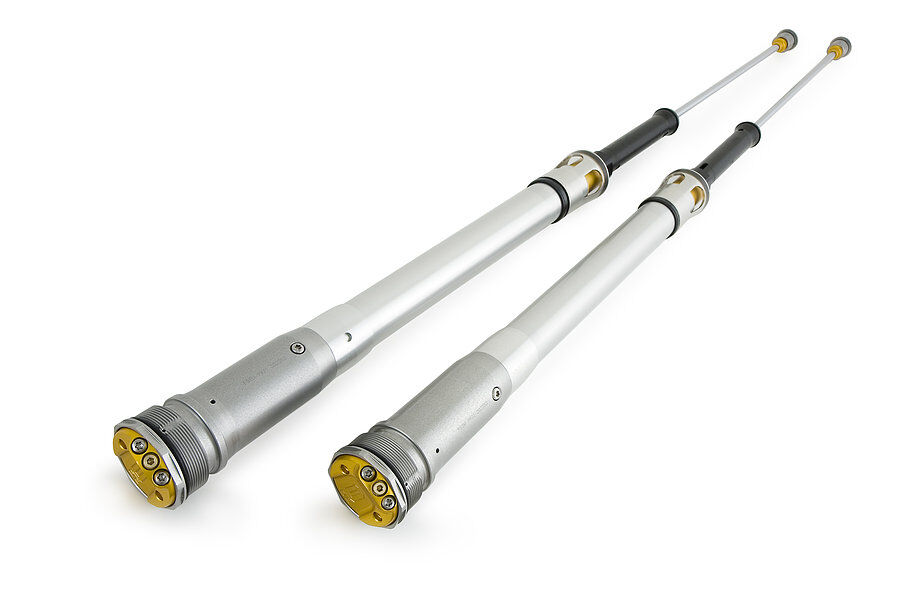

The Ohlins FGKA1594 TTX 22 fork cartridge kit is a front-end upgrade designed for the Kawasaki KX 450F. It focuses on improving damping consistency and rider feel through the stroke. Built as a cartridge replacement, it allows more controlled fork behaviour under braking and through corners.
Ohlins | Made to race, perfected to ride
Ohlins suspension components are developed with a strong focus on damping control and repeatability. The TTX 22 design is intended to provide a composed, predictable front end across changing track conditions.
Who this kit is for
- Kawasaki KX 450F riders chasing clearer front tyre feedback and stability
- Riders who want more adjustment range to suit different tracks and riding styles
- Owners looking for an Ohlins cartridge solution rather than external bolt-ons
Shock design & features
- TTX 22 fork cartridge design from Ohlins
- Cartridge-based damping upgrade for improved control and consistency
- Internal components designed for durability and stable damping performance over time
Tuning controls
- Separate compression adjustment
- Separate rebound adjustment
Before you install
- Confirm compatibility with your exact Kawasaki KX 450F model/year before installation
- Professional installation is recommended to ensure correct assembly and fork setup
- Plan time for setting sag and dialling in clicker settings to match your riding conditions
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FGKA1594 |
| Model # | TTX Cartridge kit |
| Barcode # | FGKA1594 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Fork Length (mm) | 943.0 |
| Stroke Metal to Metal (mm) | 302.0 |
| Product Family | TTX 22 |
| Notes | 08765-series spring |
| Fitted Spring | Sold separately, see notes. |
| Rec. Ohlins Oil | 01330- |
