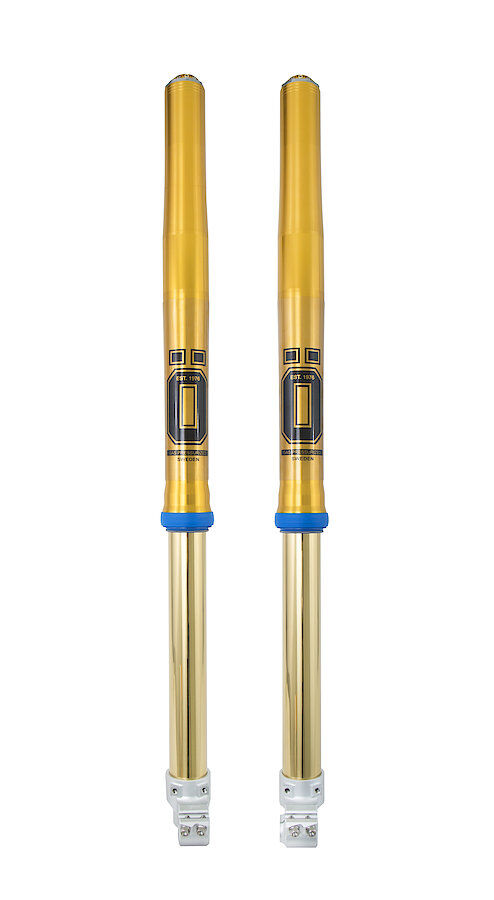

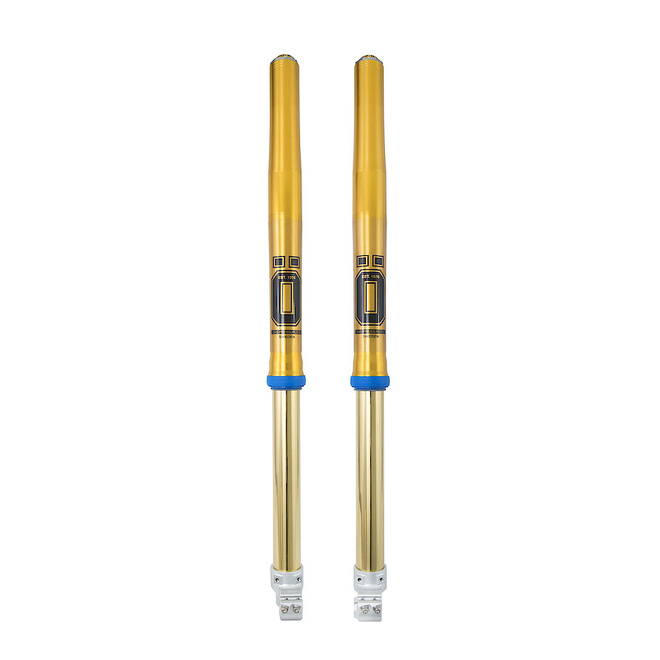

The Ohlins FGKT1593 TTX 22 fork cartridge kit is designed to sharpen front-end control and consistency for selected KTM SX and SX-F models across multiple regions. It replaces the internal damping components to deliver more precise suspension behaviour and clearer feedback at the handlebar. This kit is intended for riders who want a more controlled, confidence-inspiring front end without complicating setup.
Ohlins | Made to race, perfected to ride
Built around Ohlins’ focus on predictable damping and repeatable adjustment, the TTX 22 concept targets stability under braking and improved feel through the corner. The result is a calmer, more communicative front end when riding at pace.
Who this kit is for
- Riders chasing improved braking stability and front-end feedback
- Owners of KTM 125/150/250 SX and 250/350 SX-F models listed in the product name across the noted regions
- Track-focused and spirited riding where consistent damping feel matters
Shock design & features
- TTX 22 fork cartridge kit for the front fork
- Designed to enhance mid-corner feel and overall front-end composure
- High-quality internal components aimed at consistent, reliable performance
Tuning controls
- Separate compression and rebound adjustment to tailor damping to rider preference and conditions
- Adjustability intended to make fine-tuning straightforward and repeatable
Before you install
- Confirm model and region compatibility exactly matches your bike as listed in the product name
- Professional installation is recommended to ensure correct assembly and setup
- Plan to set sag and damping after installation to suit your riding style
Öhlins Motorcycle Suspension Warranty
New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.
Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.
This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.
- Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
- Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
- Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.
Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.
A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.
Warranty repairs
Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.
Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.
Öhlins spare parts and service kits
Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.
No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.
Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.
| SKU | FGKT1593 |
| Model # | TTX Cartridge kit |
| Barcode # | FGKT1593 |
| Brand | Ohlins |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.800m |
| Type | Units |
| Position (Front or Rear) | Front cartridge |
| Spring Rate | No Spring/s Supplied |
| Type Code | T22DR1C1 |
| Fork Length (mm) | 948.0 |
| Stroke Metal to Metal (mm) | 307.0 |
| Product Family | TTX 22 |
| Notes | 08765-series spring |
| Fitted Spring | Sold separately, see notes. |
| Rec. Ohlins Oil | 01330- |
