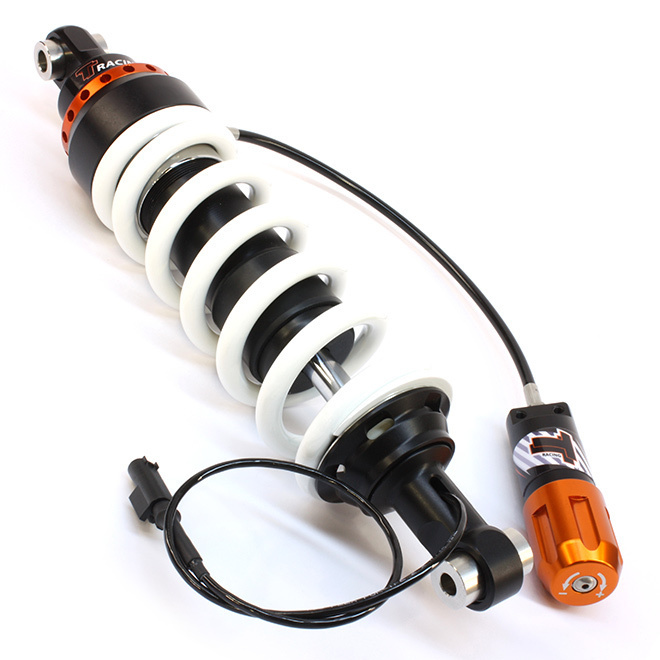

The TracTive eX-CITE + HPA for BMW F800GS is a closed, pressurised rear shock absorber built around a gas-separated internal design to help maintain consistent damping. It includes a spring and a fixed hydraulic preload adjuster (HPA) for easier preload changes without tools. Damping adjustment is provided via rebound control.

Design & features

  • Closed, pressurised shock with internal oil/gas separation to reduce foaming and support stable performance
  • Supplied with spring
  • Fixed hydraulic preload adjuster (HPA) for convenient preload changes

Tuning Controls

  • Rebound damping adjustment
  • Preload adjustment via hydraulic preload adjuster

Base Setup (factory preset)

This shock is supplied with a factory base setting. Use the rebound adjuster for fine tuning after preload is set for rider load and typical luggage.

Before You Install

  • Confirm model fitment for the BMW F800GS (2013) before installation
  • Check clearance for the preload adjuster and ensure you can access the rebound adjuster once fitted
  • Installation should be carried out by a qualified technician if you are not experienced with suspension work

Serviceability/Lifecycle

As a rebuildable, pressurised shock, periodic servicing helps keep damping performance consistent over time. Service intervals depend on use conditions and load.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM08-S2535-TR
Model # Discontinued
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type eX-CITE + HPA
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Electronic
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 429.0
Type Code eX-CITE
Stroke Metal to Metal (mm) 80.0
