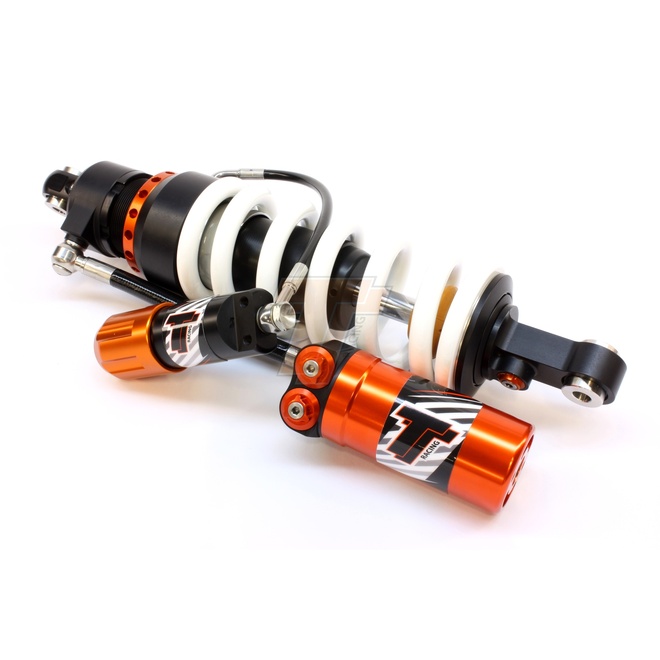

The Tractive X-PERIENCE shock for the Triumph Tiger 800 XC is a closed, pressurised rear shock built around a sealed damping cartridge to keep performance consistent over long distances. It uses an external reservoir with oil and gas separated by a piston to reduce aeration under sustained use. This model includes both compression and rebound damping adjustment, plus remote hydraulic spring preload adjustment for easier load changes.
Design & features
- Closed, pressurised construction with a sealed cartridge for stable damping behaviour
- External reservoir with a separation piston to keep oil and gas apart
- Coil-spring shock with remote hydraulic preload adjuster
Tuning Controls
- Rebound damping adjustment
- Compression damping adjustment
- Remote hydraulic spring preload adjustment
Who is this for?
- Triumph Tiger 800 XC riders who regularly vary load (luggage or passenger) and want quick preload changes
- Touring and mixed-use riders looking for a controlled, consistent shock feel over long rides
Before You Install
- Confirm fitment for your specific Tiger 800 XC model and year before ordering
- Allow clearance for the remote preload adjuster and reservoir when routing and mounting
Serviceability/Lifecycle
- Serviceable design intended to be maintained over time rather than treated as disposable
- Periodic servicing helps keep damping performance consistent, especially with frequent touring use
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46TR11-T6502-TR |
| Model # | 46TR11-T6502-TR |
| Barcode # | 46TR11T6502TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-PERIENCE |
If your Motorcycle is listed below, this product will suit:
- TRIUMPH TIGER 800 XC 2010
- TRIUMPH TIGER 800 XC 2011
- TRIUMPH TIGER 800 XC 2012
- TRIUMPH TIGER 800 XC 2013
- TRIUMPH TIGER 800 XC 2014
- TRIUMPH TIGER 800 XC 2015
- TRIUMPH TIGER 800 XC 2016
- TRIUMPH TIGER 800 XC 2017
- TRIUMPH TIGER 800 XC 2018
- TRIUMPH TIGER 800 XC 2019
- TRIUMPH TIGER 800 XC 2020
- TRIUMPH TIGER 800 XC 2021
- TRIUMPH TIGER 800 XC 2022
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound & Compression High + Low Speed |
| Shock Options - Hydraulic Preload Adjuster | Hydraulic with knob |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 360.0 |
| Spring Rate Standard | 110 N/mm |
| Type Code | X-PERIENCE |
| Stroke Metal to Metal (mm) | 81.0 |
| Fitted Spring | 110-205 |
