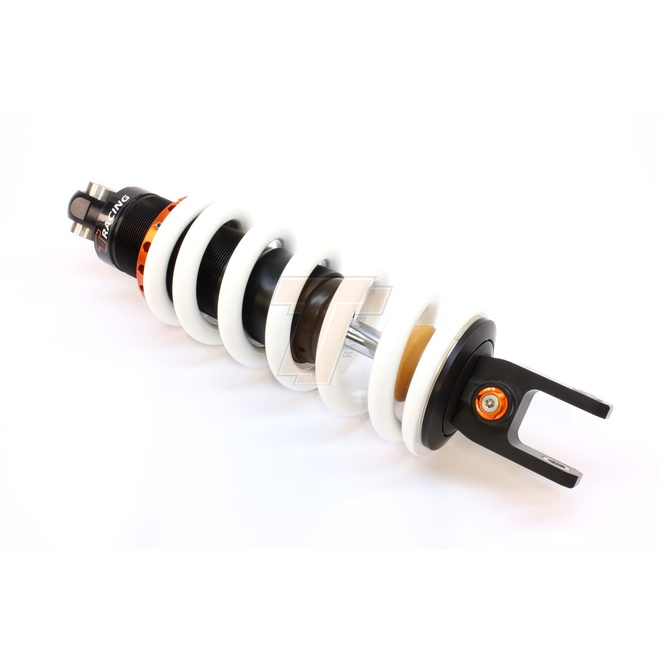

The TracTive X-CITE shock for the BMW G 650 GS is a closed, pressurised mono-shock built around a sealed cartridge design for consistent damping and reliable oil control. This model provides external rebound adjustment and uses an oil/gas separation piston (not an emulsion layout). It is supplied as a spring-equipped unit.
Design & features
- Closed, pressurised architecture with a sealed cartridge for stable damping performance.
- Oil and gas are separated by an internal separation piston to reduce aeration.
- Spring-equipped shock assembly.
Tuning Controls
- Rebound damping adjustment.
Base Setup (factory preset)
Damping is supplied with a baseline factory setup, with rebound available externally for fine-tuning to load, riding conditions, and preference.
Who is this for?
- BMW G 650 GS riders who want a serviceable, pressurised shock design with external rebound control.
- Riders who prefer the consistency benefits of an oil/gas separated layout rather than an emulsion design.
Before You Install
- Confirm motorcycle fitment for BMW G 650 GS and check clearance around the shock and any adjustment access.
- Set sag and spring preload to suit rider weight and typical luggage/passenger use.
Serviceability/Lifecycle
As a sealed-cartridge, pressurised shock, routine servicing helps maintain damping consistency over time. Service intervals depend on usage and operating conditions.
Teknik Motorsport Pty Ltd Warranty terms for TracTive products.
This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.
Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.
Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.
When a claim is made under the warranty, the following conditions have to be met:
- You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
- The product has to be installed and adjusted as described in the instructions
- The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
- Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
- The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
- A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
- Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
- Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
| SKU | 46BM09-R3128-TR |
| Model # | 46BM09-R3128-TR |
| Barcode # | 46BM09R3128TR |
| Brand | TracTive Suspension |
| Shipping Weight | 5.0000kg |
| Shipping Size | 0.200 x 0.200 x 0.400m |
| Unit Of Measure | ea |
| Type | X-CITE |
If your Motorcycle is listed below, this product will suit:
- BMW F 650 GS (Twin) 2008
- BMW F 650 GS (Twin) 2009
- BMW F 650 GS (Twin) 2010
- BMW F 650 GS (Twin) 2011
- BMW F 650 GS (Twin) 2012
- BMW G 650 GS (Single) 2008
- BMW G 650 GS (Single) 2009
- BMW G 650 GS (Single) 2010
- BMW G 650 GS (Single) 2011
- BMW G 650 GS (Single) 2012
- BMW G 650 GS (Single) 2013
- BMW G 650 GS (Single) 2014
- BMW G 650 GS (Single) 2015
- BMW G 650 GS (Single) 2016
| Position (Front or Rear) | Rear |
| Damping Adjustment Type | Rebound |
| Seat Height Change (mm) | Standard Height |
| Shock Length Eye to Eye (mm) | 315.0 |
| Spring Rate Standard | 170 N/mm |
| Type Code | X-CITE |
| Stroke Metal to Metal (mm) | 51.0 |
| Fitted Spring | 170-180 |
