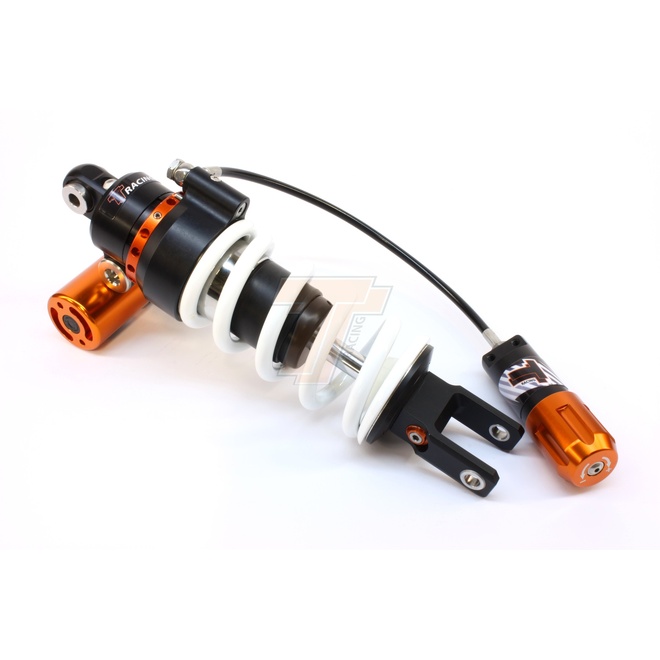

The Tractive X-TREME rear shock for the BMW S 1000 XR uses a closed, pressurised damper layout with oil and gas separated by a piston to reduce aeration and maintain consistent damping under sustained use. It is built around a 46 mm shock body architecture and includes an external reservoir. This model is supplied with a spring fitted and provides multiple external damping adjustments for tuning.

Design & features

  • Closed, pressurised monotube design with oil/gas separation via an internal piston for stable damping consistency.
  • External reservoir to support oil volume management and damping stability during extended riding.
  • Spring included.

Tuning Controls

  • Rebound damping adjustment.
  • Compression damping adjustment.
  • Additional compression circuit adjustment (triple-adjustable configuration).

Base Setup (factory preset)

This shock is supplied with a factory baseline setting intended to provide a workable starting point. Fine-tuning can be done via the external damping adjusters to suit load, riding pace and road surface.

Who is this for?

  • BMW S 1000 XR riders who want broader damping tuning range with separate circuits for more precise setup work.
  • Riders who do longer stints or carry varying loads and want consistent shock behaviour from a pressurised, separated oil/gas design.

Before You Install

  • Confirm model fitment for your BMW S 1000 XR and check clearance around the reservoir and adjusters.
  • Set sag and verify spring suitability for your typical load before making damping changes.

Serviceability/Lifecycle

The pressurised, piston-separated design is intended to be serviceable and maintain performance through routine maintenance. Service intervals and procedures should follow Tractive guidance for this model.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM15-T8577-TR
Model # 46BM15-T8577-TR
Barcode # 46BM15T8577TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 352.0
Spring Rate Standard 120 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 63.0
Fitted Spring 120-160
