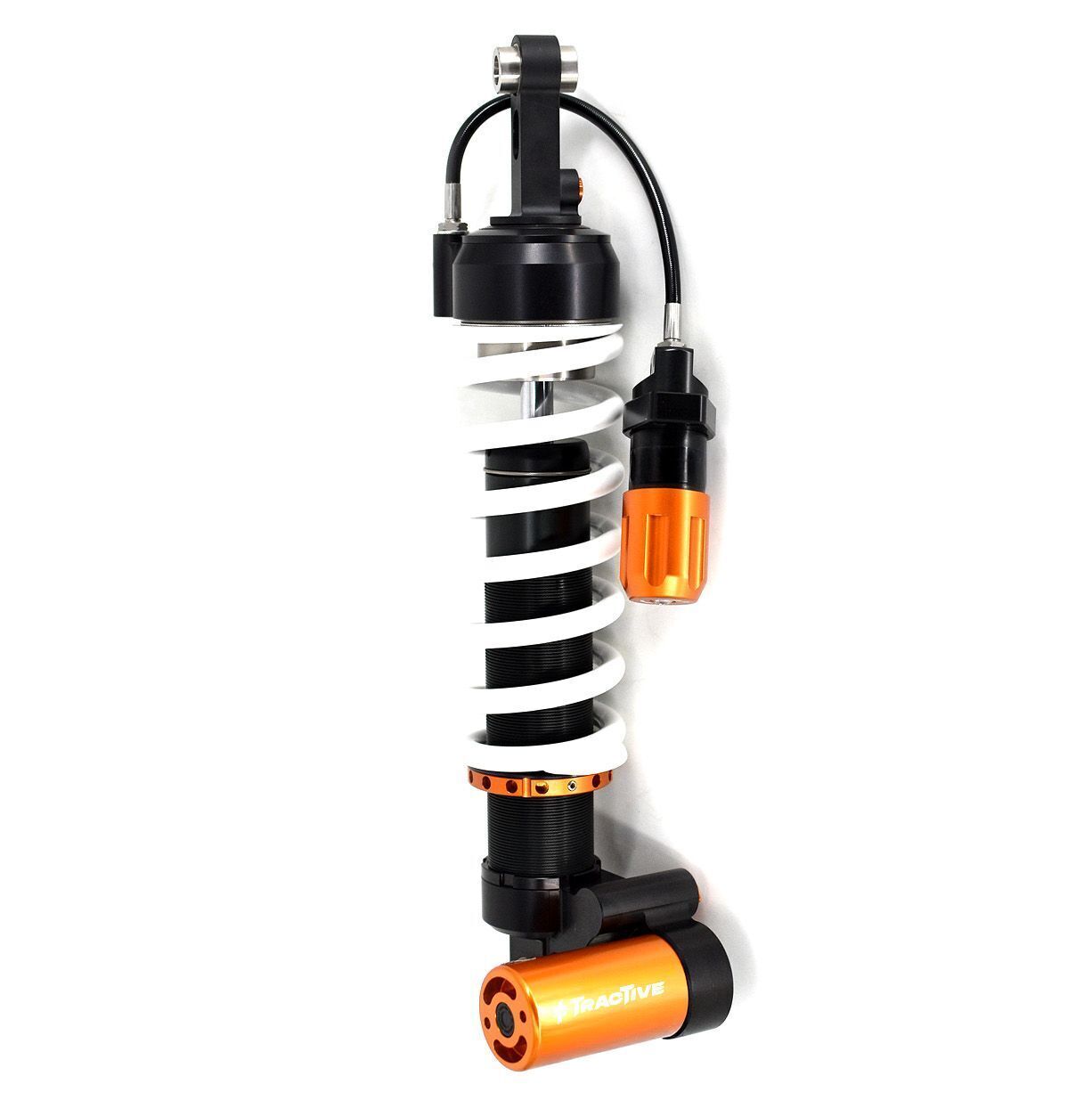

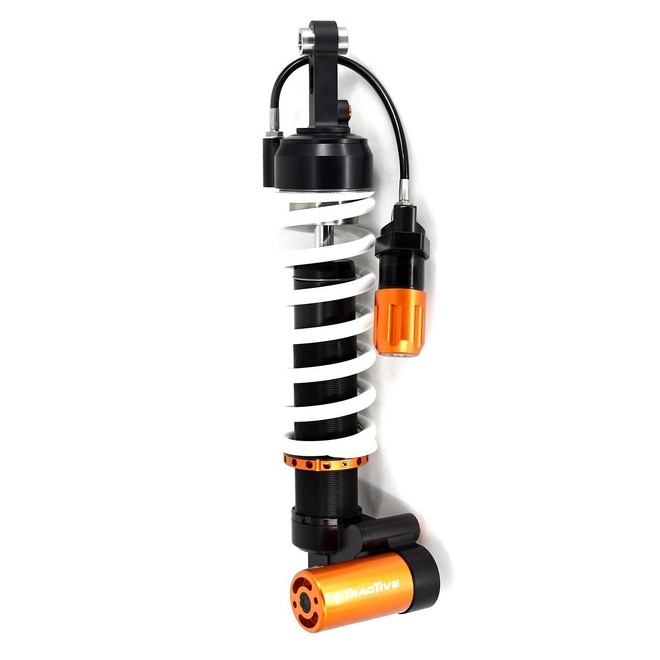

The TracTive rear shock for the BMW R 12 G/S is a closed, pressurised monotube design with a fixed reservoir. This architecture helps keep damping more consistent by separating gas and oil, especially when conditions get demanding. It’s built as a complete replacement rear shock assembly.

Design & features

Closed, pressurised monotube shock construction
Fixed reservoir with internal separation piston to keep gas and oil separated
Supplied with a spring as part of the shock assembly

Tuning Controls

Triple-adjustable damping: rebound plus compression adjustment with separate high- and low-speed circuits
Hydraulic preload adjuster for tool-free spring preload changes

Who is this for?

Riders who want broad, independent damping control for dialling in ride feel
Owners who regularly vary load (luggage/passenger) and want quick preload changes
Those looking for a pressurised, oil/gas-separated shock layout for more stable damping behaviour

Base Setup (factory preset)

This shock is supplied with a factory baseline tune intended to be a sensible starting point. Final settings will depend on rider weight, load, tyres and intended use.

Before You Install

Confirm the exact BMW model and year/application match for your R 12 G/S before ordering
Check clearance around the fixed reservoir location and routing space around the shock body
Ensure spring rate suitability for your typical load and riding conditions

Serviceability/Lifecycle

As a closed, pressurised shock, it is designed to be serviced to maintain performance over time. Service intervals depend on usage conditions and kilometres.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

When a claim is made under the warranty, the following conditions have to be met:

You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
The product has to be installed and adjusted as described in the instructions
The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.

SKU	46BM25-T5574-TR
Model #	46BM25-T5574-TR
Brand	TracTive Suspension
Shipping Weight	5.0000kg
Shipping Size	0.200 x 0.200 x 0.400m
Unit Of Measure	ea
Type	X-TREME
