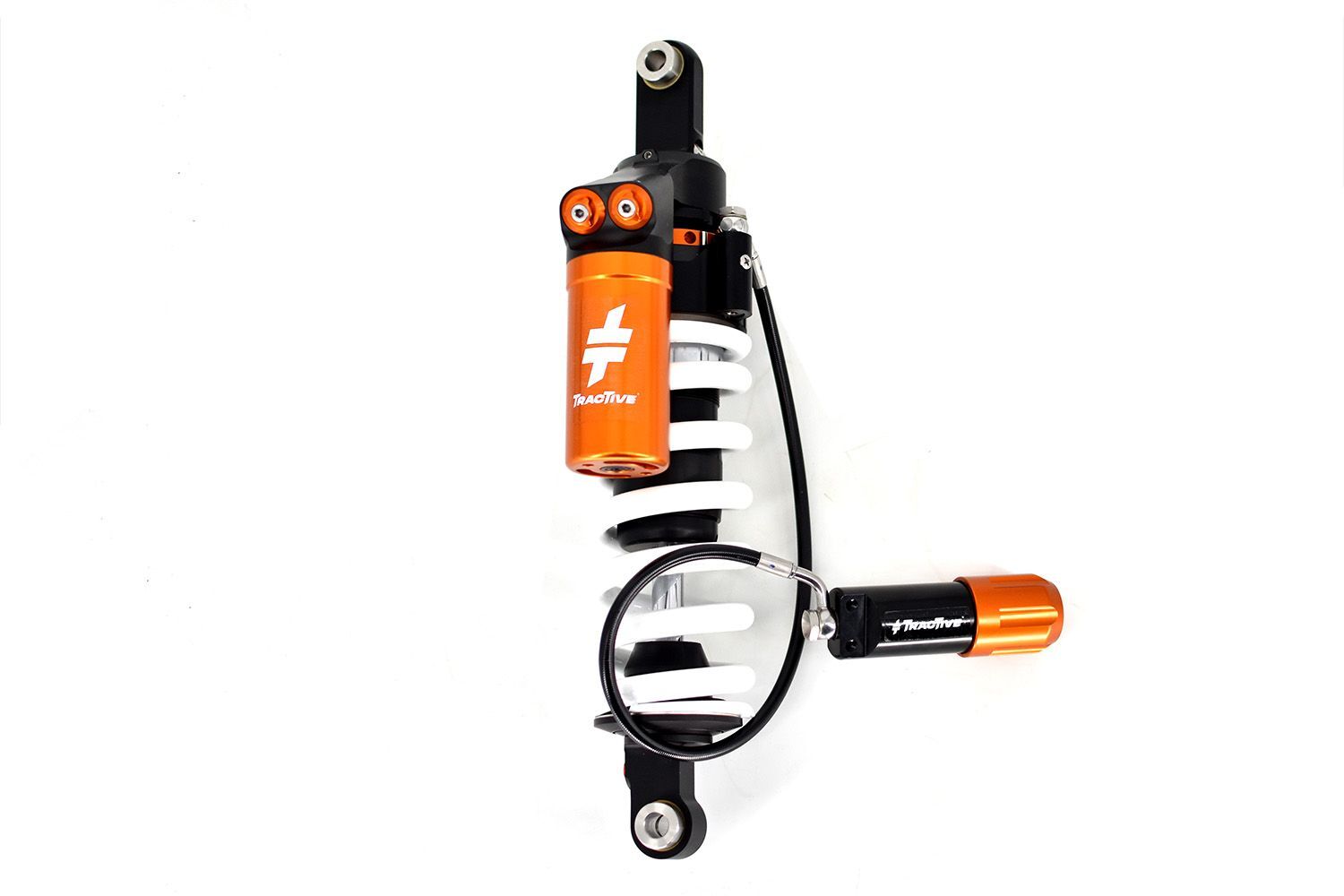

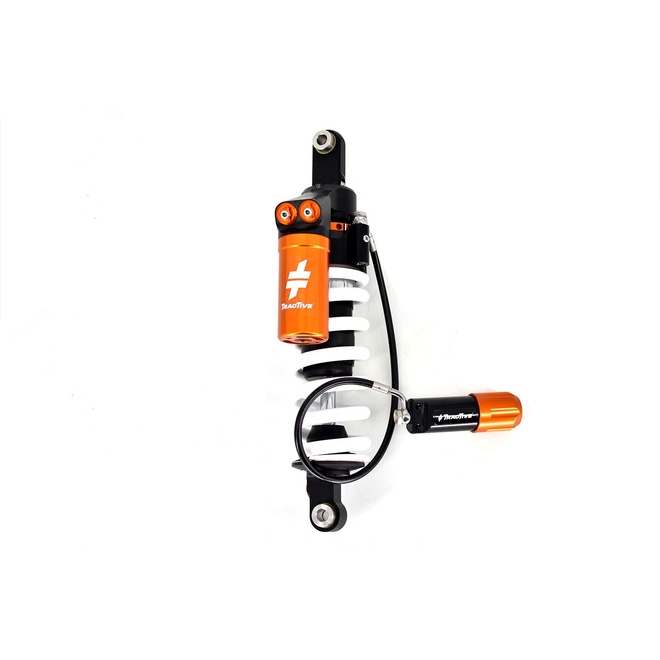

The TracTive Ducati DesertX Rear Shock X-TREME is a closed, pressurised rear shock built around a 46 mm shock body and an external reservoir. This architecture keeps the damping oil separated from the gas for consistent performance across changing conditions. Damping is fully adjustable with independent compression and rebound controls.

Design & features

  • Closed, pressurised shock design
  • External reservoir with oil/gas separation piston
  • Coil spring fitted

Tuning Controls

  • Rebound damping adjustment
  • Compression damping adjustment

Base Setup (factory preset)

This shock is supplied with a factory damping baseline. Fine-tuning is typically done by adjusting rebound and compression to suit load, tyres, and riding conditions.

Before You Install

  • Confirm compatibility for your Ducati DesertX application.
  • Set spring preload for correct ride height and sag before evaluating damping changes.
  • After installation, re-check fasteners and clearances through full suspension travel.

Serviceability/Lifecycle

The closed, pressurised design with separated gas and oil is intended for stable damping behaviour. Like any performance shock, it should be serviced periodically to keep seals and oil in good condition.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46DU21-T5514-TR
Model # 46DU21-T5514-TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
Format Rear
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Lowered -35
Shock Length Eye to Eye (mm) 338
Spring Rate Standard 85 N/mm
Spring Option -2 75-180
Spring Option Maximum 95-180
Spring Option +1 90-180
Spring Option -1 80-180
Spring Option +2 95-180
Manufacturer Note 1 Side and/or center stand might be too long
Damping Feature PDSII anti-bottoming
Damping System Separated oil/gas with reservoir
Rebound Adjuster Position 9 (180 deg)
Low-speed Compression Adjuster Position 12
High-speed Compression Adjuster Position 10
Spring Preload Setting 15 +7/-3
Preload Adjustment Hydraulic, with knob
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 85-180
Notes PDSII anti-bottoming
Stroke Metal to Metal (mm) 84
Type Code X-TREME
