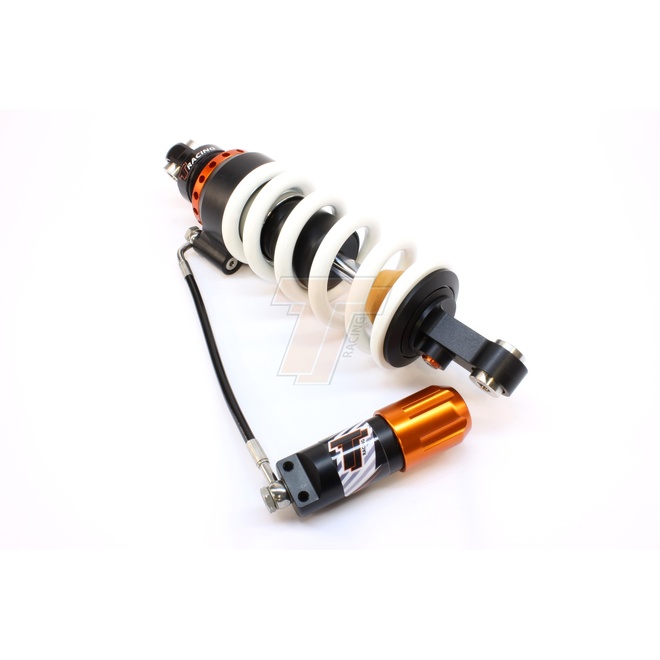

The TracTive X-CITE shock for the Harley-Davidson Pan America 1250 is a closed, pressurised damper built around a sealed cartridge design to help maintain consistent damping over varying conditions. This model includes external rebound adjustment so you can fine-tune return speed to suit load, tyres, and riding pace. It is supplied as a sprung shock unit.

Design & features

  • Closed, pressurised shock architecture to reduce aeration and keep damping behaviour more consistent
  • Sealed cartridge construction for controlled oil flow and stable operation
  • Oil/gas separation via an internal separation piston (not an emulsion design)

Tuning Controls

  • Rebound damping adjustment to control how quickly the shock extends after a bump or corner load

Base Setup (factory preset)

This shock is supplied with a baseline setup intended to be adjusted from there to match rider weight, typical luggage/passenger use, and intended terrain. Use rebound adjustment to balance traction and chassis stability after setting sag.

Before You Install

  • Confirm correct fitment for your Pan America 1250 and inspect linkage/bushings before installation
  • Set rider sag after installation, then fine-tune rebound to avoid wallow (too little) or harsh packing down (too much)
  • If you change load (luggage/passenger), recheck sag and adjust rebound as needed

Serviceability/Lifecycle

As a sealed, pressurised shock with oil/gas separation, the damper is designed to be serviced to restore oil condition and gas pressure over its lifecycle. Service intervals will depend on use conditions such as heat, dirt exposure, and kilometres ridden.

Is It Right For You?

Choose this option if you want a pressurised, separation-piston shock with straightforward rebound tuning for the Pan America 1250. If you’re chasing additional external adjustment beyond rebound, consider a model specified with those controls.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46HD21-R3513-TR
Model # 46HD21-R3513-TR
Barcode # 46HD21R3513TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-CITE
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 402.0
Spring Rate Standard 100 N/mm
Type Code X-CITE
Stroke Metal to Metal (mm) 89.0
Fitted Spring 100-235
