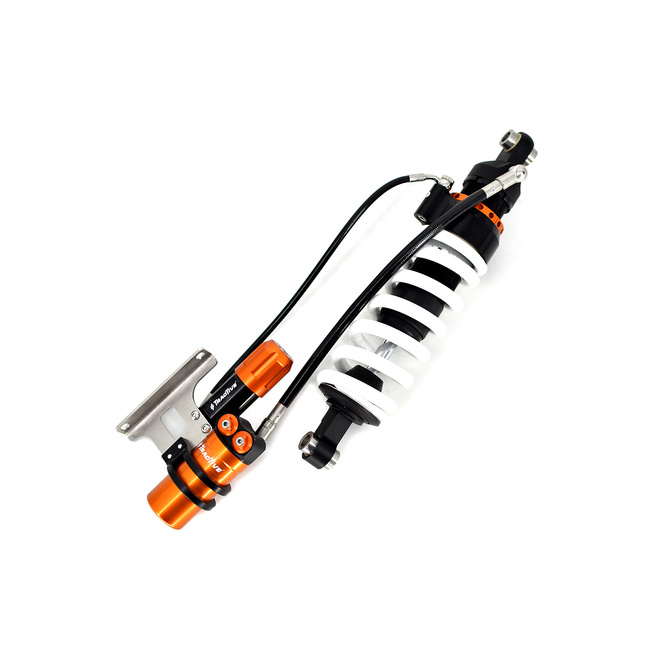

The Tractive X-TREME rear shock for the BMW R 1300 GS is a closed, pressurised damper designed for consistent control across changing conditions. It uses an oil/gas separated architecture with a swivel reservoir to help maintain stable damping under sustained use. This “Basic” configuration includes external adjustment for both compression and rebound damping.

Design & features

  • Closed, pressurised shock design to support consistent damping performance
  • Oil/gas separated layout (separation piston) to reduce aeration and improve control
  • Swivel reservoir packaging to suit fitment and routing on the motorcycle

Tuning Controls

  • Compression damping adjustment
  • Rebound damping adjustment

Base Setup (factory preset)

This shock is supplied with a factory baseline tune intended as a starting point. Fine adjustment is made via the external compression and rebound adjusters to suit load, tyres, and riding conditions.

Who is this for?

  • BMW R 1300 GS riders who want external control over compression and rebound damping
  • Owners seeking a pressurised, oil/gas separated shock architecture for consistent feel during longer or harder rides

Before You Install

  • Confirm model and fitment for your BMW R 1300 GS before installation
  • Set sag and damping after install to match rider load and typical use

Serviceability/Lifecycle

As a pressurised shock with a separated gas chamber and reservoir, this unit is built to be maintained. Periodic servicing helps keep damping consistent over time, particularly if the bike is used in harsh or high-load conditions.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46BM24-T7566-TR
Model # 46BM24-T7566-TR
Barcode # 46BM24T7566TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
See our Shipping Information See our Frequently Asked Questions

If your Motorcycle is listed below, this product will suit:

Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Lowered -25
Shock Length Eye to Eye (mm) 382.0
Spring Rate Standard 150 N/mm
Type Code X-TREME
Stroke Metal to Metal (mm) 74
Notes PDSII anti-bottoming
Fitted Spring 150-205
