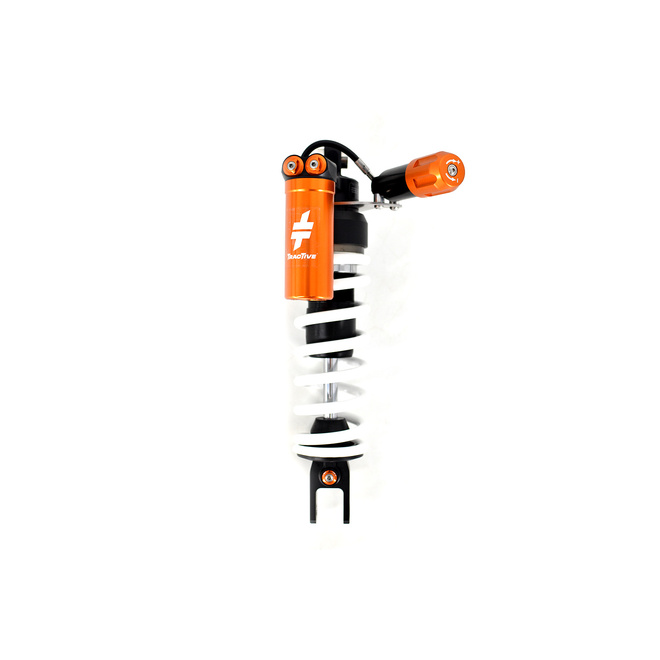

The TracTive X-TREME shock for the Yamaha Tenere 700 Rally is a closed, pressurised rear shock built around a sealed internal architecture for consistent damping over long rides. It uses separated oil and gas rather than an emulsion layout, helping maintain stable feel as conditions change. This model is a standard-height fitment.

Design & features

  • Closed, pressurised shock design with a sealed internal damping layout
  • Oil/gas separation via an internal separation piston (not an emulsion shock)
  • Remote reservoir connected by hose
  • Supplied with spring
  • Hydraulic preload adjuster (hose-mounted) for tool-free preload changes

Tuning Controls

  • Triple external damping adjustment (rebound plus two compression circuits)
  • Hydraulic preload adjustment via remote adjuster

Base Setup (factory preset)

The shock is supplied with TracTive’s baseline valving and adjuster positions intended as a practical starting point. Fine-tuning is done by adjusting preload for ride height/sag balance, then using rebound and compression controls to suit load, tyres and terrain.

Who is this for?

  • Tenere 700 Rally riders who want broad adjustment range for mixed road and off-road use
  • Riders who regularly change luggage or passenger load and want quick preload changes
  • Owners prioritising consistent damping feel from a closed, pressurised shock design on longer rides

Before You Install

  • Confirm compatibility with your exact Yamaha Tenere 700 Rally variant and model year before fitting
  • Plan to set sag and preload after installation, then dial in damping adjustments from the factory baseline
  • Ensure reservoir hose routing and clearance are checked during installation

Is It Right For You?

If you want a standard-height rear shock with a wide tuning envelope, a hose remote reservoir, and easy load compensation via a hydraulic preload adjuster, this X-TREME configuration is a strong match. If you prefer a simpler set-and-forget approach, consider whether you’ll make use of the full triple-adjuster capability.

Teknik Motorsport Pty Ltd Warranty terms for TracTive products.

This TracTive product has been assembled with the utmost care and tested according to ISO9001:2015 Quality system. In the unlikely event that the product does not fulfill your expectations because of faulty materials or manufacturing errors, please contact us through your dealer.

Teknik Motorsport Pty Ltd warrants that if, within 24 months of the date of sale the product is found to be defective as a result of manufacturing errors or faulty components, the product will be repaired free of charge by us, or by a TracTive approved repairer at our discretion.

Warranty covers the direct service material cost, service labour cost ($80/hr AUD) and shipping costs of the service partner. Other costs will be regarded on a case by case basis by Teknik Motorsport and TracTive.

 When a claim is made under the warranty, the following conditions have to be met:

  • You must have read the instructions carefully before mounting the product in the vehicle or adjusting the product.
  • The product has to be installed and adjusted as described in the instructions
  • The product must have been maintained and serviced in accordance with the recommendations in the manual. If not described in the manual, the recommended service intervals for regular street use: every 30.000 km or max 2 years, whichever is earlier.
  • Warranty shall apply only when TracTive original parts, procedures and tools have been used to service and/or repair, and if service and repair is performed by designated TracTive partners.
  • The product may not have been neglected, improperly used, altered or subjected to excessive loads. Excluded from warranty are normal wear, damage and rust.
  • A sales receipt or other proof of purchase originally eminating from Teknik Motorsport Pty Ltd. No warranty will be given on TracTive or Touratech products not purchased from or through Teknik Motorsport pty ltd.
  • Excluded from warranty are in particular products which are used in vehicles that are intended or suitable for taking part in sporting events, or have actually been used this way.
  • Recommended service interval for Motorsport applications: every season, or every 50 hours, every 10.000km or after any perceived loss in performance.
SKU 46YA25-T5546-TR
Model # 46YA25-T5546-TR
Barcode # 46YA25T5546TR
Brand TracTive Suspension
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.400m
Unit Of Measure ea
Type X-TREME
Format Rear
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Rear
Damping Adjustment Type Rebound & Compression High + Low Speed
Shock Options - Hydraulic Preload Adjuster Hydraulic with knob
Seat Height Change (mm) Standard Height
Shock Length Eye to Eye (mm) 385
Length Change (mm) Standard Height
Spring Rate Standard 75 N/mm
Low-speed Compression Adjuster Position 12
Spring Option -2 65-235
Rebound Adjuster Position 12 (180 deg)
Damping System Separated oil/gas with reservoir
Damping Feature PDSII anti-bottoming
Manufacturer Note 1 Does not fit base Tenere 700
Spring Option +2 85-235
Spring Option -1 70-235
Spring Option +1 80-235
Spring Option Maximum 90-235
High-speed Compression Adjuster Position 10
Spring Preload Setting 19 +10/-0
Preload Adjustment Hydraulic, with knob
Spring Type Linear, included
Piston Diameter (mm) 46
Suspension Unit Type Shock
Fitted Spring 75-235
Notes PDSII anti-bottoming
Stroke Metal to Metal (mm) 102
Type Code X-TREME
