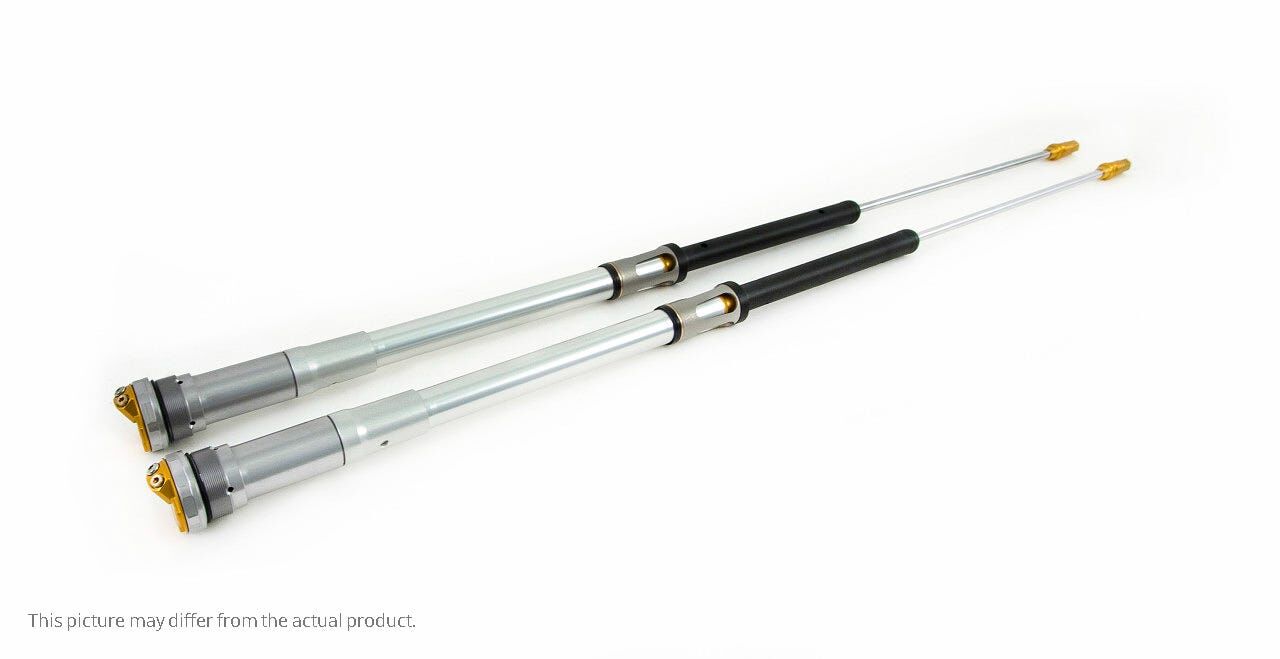

The Ohlins FGKA1690 STX 22 fork cartridge kit is designed to refine front-end control on the Kawasaki KX 85. It focuses on improved damping behaviour to support stability under braking and a more settled feel through corners. With external adjustment for both compression and rebound, it allows a setup tailored to rider preference and track conditions.

Ohlins | Made to race, perfected to ride

Ohlins suspension components are developed with a focus on consistent damping control and clear rider feedback. This cartridge kit updates the fork’s internal damping system to deliver a more composed and communicative front end.

Who this kit is for

  • Kawasaki KX 85 riders wanting better front-end feel and stability
  • Riders who value adjustable damping to suit different conditions
  • Those looking for a more controlled response under braking and through turns

Design & features

  • STX 22 fork cartridge kit configuration
  • Refined damping characteristics for improved stability and feedback
  • Premium internal components aimed at consistent damping performance

Tuning controls

  • Separate compression adjustment
  • Separate rebound adjustment

Before you install

  • Confirm compatibility with your exact Kawasaki KX 85 model and year before fitting
  • Professional installation is recommended to ensure correct assembly and setup
  • After installation, adjust compression and rebound methodically to suit conditions

Öhlins Motorcycle Suspension Warranty

New Öhlins motorcycle shock absorbers, front forks and cartridge kits supplied by Teknik Motorsport are covered by the applicable Öhlins manufacturer’s warranty against defects in materials and workmanship.

Teknik Motorsport is an authorised Öhlins Service Centre and administers warranty claims in accordance with the Öhlins warranty conditions. The service intervals below form part of the maintenance requirements for Öhlins products supplied and supported by Teknik Motorsport.

This warranty is in addition to the consumer guarantees that apply under the Australian Consumer Law.

  • Registered motorcycles — non-competition road use Five years, subject to correct application, installation, setup and servicing every: 20,000 km or two years, whichever occurs first.
  • Registered motorcycles — adventure and light off-road use Five years, subject to correct application, spring rate, setup and servicing every: 10,000 km or annually, whichever occurs first.
  • Unregistered or competition motorcycles Two years for eligible Öhlins MX and Enduro products, subject to inspection every ten hours and servicing every: 30 operating hours or annually, whichever occurs first.

Compliance with the applicable service interval is a condition of the Öhlins manufacturer’s warranty. Evidence of servicing may be required when a warranty claim is assessed.

A seal leak, loss of damping performance or internal wear arising after the prescribed service interval has been exceeded will be treated as a service or maintenance issue rather than a manufacturing defect.

Warranty repairs

Öhlins suspension products are designed to be serviced and repaired. Where a warranty claim is approved, the normal remedy is repair of the customer’s original suspension unit using genuine Öhlins replacement parts.

Replacement of a complete shock absorber, fork or cartridge kit is not automatic and would normally occur only where the product has suffered a manufacturing failure that cannot reasonably be repaired. This is at Ohlins discretion.

Öhlins spare parts and service kits

Öhlins spare parts, seals, bushes, service kits, springs, fluids and individual components are covered only against defects present when supplied.

No fixed age-based warranty applies to wear items, service parts or consumable components. Wear, deterioration, contamination, incorrect installation and damage caused by another component are not manufacturing defects.

Öhlins gives the customer a meaningful five-year warranty on products (Units), provided the suspension is maintained as suspension should be maintained. Teknik supports that warranty locally, can inspect the product properly, and can repair it with genuine parts rather than discarding it.

SKU FGKA1690
Model # STX Cartridge kit MX
Barcode # FGKA1690
Brand Ohlins
Shipping Weight 5.0000kg
Shipping Size 0.200 x 0.200 x 0.800m
Type Units
See our Shipping Information See our Frequently Asked Questions
Position (Front or Rear) Front cartridge
Spring Rate No Spring/s Supplied
Type Code T22DR1C1
Stroke Metal to Metal (mm) 266.0
Product Family STX 22
Notes 08794- spring series *Replaced by FCX 0105*
